CISCO2691-RPS

Manufacturer Part#: Cisco CISCO2691-RPS

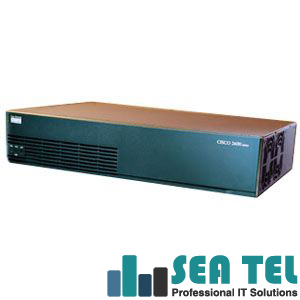

CISCO2691-RPS Cisco 2600 Series Multiservice Router Platform

CISCO2691-RPS - Router - 2 x AIM, 1 x Network Module - 2 x 10/100Base-TX LAN

Cisco CISCO2691-RPS Physical Characteristics:
Shipping Dimensions: 12.5 Height x 19 Width x 23 Depth
Weight: 15 lb
Shipping Weight: 17.68 lb

Cisco CISCO2691-RPS Original Manufacturer Warranty:
Standard Warranty: 90 Day Limited

Cisco CISCO2691-RPS General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2600
Product Name: 2691 Modular Access Router
Product Type: Router

Cisco CISCO2691-RPS Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management

Cisco CISCO2691-RPS Media & Performance:
Connectivity Media: Category 5 UTP 10/100Base-TX
Distance Support: 328 ft UTP
Forwarding/Filtering Rate: 70Kpps

Cisco CISCO2691-RPS I/O Expansions:
Number of Expansion Slots: 6
Expansion Slots: (1 Total) Network Module
Expansion Slots: (3 Total) WIC
Expansion Slots: (2 Total) AIM
Modules: Not Included

Cisco CISCO2691-RPS Management & Protocols:
Management:
SNMP
Security Device Manager (SDM)
SNMP
Security Device Manager (SDM)

Protocols: RSVP
Protocols: TCP/IP

Cisco CISCO2691-RPS Memory:
Standard Memory: 128MB
Maximum Memory: 256MB
Memory Technology: DRAM
Flash Memory: 32 MB

Cisco CISCO2691-RPS Controls/Indicators:
Controls: Power Switch
Status Indicators:
Front Panel:
•PWR
•SYS/RPS
•ACTIVITY

Rear Panel:
•LINK
•ACT
•100 Mbps
•CF1

Cisco CISCO2691-RPS Software:
Operating System:
Cisco 2691 Series IOS IP BASE
Cisco 2691 Series IOS IP BASE

Cisco CISCO2691-RPS Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 5V DC
Input Voltage Range: 3.3V DC
Input Voltage Range: 12V DC
Input Voltage Range: -12V DC
Input Current: 1A @ 240V AC
Input Current: 2A @ 100V AC
Input Current: 15A @ 5V
Input Current: 12A @ 3.3V
Input Current: 5A @ 12V
Input Current: 2A @ -12V
Frequency: 50 Hz or 60 Hz
Power Consumption: 105W Maximum
Power Source: Power Supply

Cisco CISCO2691-RPS Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -40 degrees F (-40.0 degrees C) to 158 degrees F (70.0 degrees C) Non-operating
Humidity: 5% to 95% Non-condensing Relative Humidity Operating
Altitude: 6500 ft Maximum Operating
Thermal Dissipation: 745 BTU/h

Cisco CISCO2691-RPS Physical Characteristics:
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Dimensions: 3.46 Height x 17.07 Width x 11.2 Depth
