CISCO2651XM-ADSL

Manufacturer Part#: Cisco  CISCO2651XM-ADSL

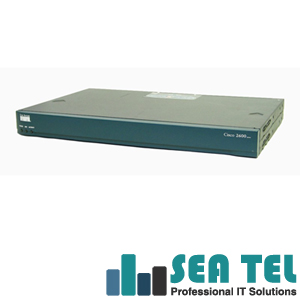

CISCO2651XM-ADSL Cisco 2600 Series Multiservice Router Platform

CISCO2651XM-ADSL -   2651Xm-Adsl Bundle, Wic-1Adsl, 2Fe, Ip+, 32Flash, 128Dram

Cisco 2600 series is an award-winning family of modular multiservice access routers, providing flexible LAN and WAN configurations, multiple security options, voice/data integration, and a range of high performance processors. The wide range of features, interfaces, and flexibility of adding over 50 modules makes the Cisco 2600 family the ideal branch-office router for today's and tomorrow's customer requirements.

Cisco CISCO2651XM-ADSL Memory:
Maximum Memory: 256MB
Memory Technology: DRAM
Flash Memory: 32 MB

Cisco CISCO2651XM-ADSL Controls/Indicators:
Controls: Power Switch
Status Indicators:
Front Panel:

•PWR
•RPS
•ACTIVITY
Rear Panel:

•LINK
•ACT
•FDX
•100 Mbps

Cisco CISCO2651XM-ADSL Software:
Operating System:
Cisco 2600 Ser IOS IP BASE
Cisco 2600 Ser IOS IP BASe

Cisco CISCO2651XM-ADSL Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 1.5A
Frequency: 50 Hz or 60 Hz
Power Consumption: 50W Maximum
Power Source: Power Supply

Cisco CISCO2651XM-ADSL Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -40 degrees F (-40.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Relative Humidity Operating
Altitude: 6500 ft Maximum Operating
Thermal Dissipation: 260 BTU/h

Cisco CISCO2651XM-ADSL Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Desktop
Form Factor: Wall-mountable
Dimensions: 1.69 Height x 17.5 Width x 11.8 Depth
Shipping Dimensions: 11 Height x 20 Width x 23 Depth
Weight: 10.25 lb
