CISCO2650-DC

Manufacturer Part#: Cisco  CISCO2650-DC

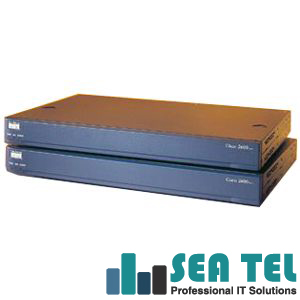

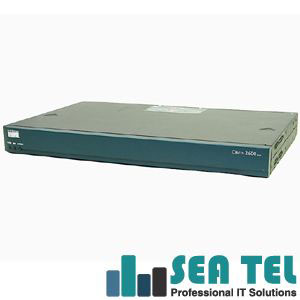

CISCO2650-DC Cisco 2600 Series Multiservice Router Platform

CISCO2650-DC -  High Performance 10/100 Modular Router w/ IP s/w -DC NEBs

Cisco 2600 Series is modular, interface configurations are easily customized to accommodate a wide variety of network applications, such as branch office data access, integrated switching, multiservice voice/data integration, dial access services, VPN access and firewall protection, inter-VLAN routing and serial device concentration.The Cisco 2600 Series is ideal for sites and solutions requiring the highest levels of integration at the edge for Branch Office IP Telephony, voice gateway, and integrated flexible routing with low-density switching solutions.

Cisco CISCO2650-DC Memory:
Flash Memory: 8 MB

Cisco CISCO2650-DC Controls/Indicators:
Status Indicators:

•Power
•RPS status
•Network activity
•Interface status

Cisco CISCO2650-DC Software:
Operating System:
Cisco 2600 Series IOS IP
Cisco 2600 Series IOS Ip

Cisco CISCO2650-DC Power Description:
Input Voltage Range: -38V DC to -75V DC
Input Current: 2A
Power Consumption: 75W Maximum
Power Source: Power Supply

Cisco CISCO2650-DC Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -40 degrees F (-40.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Relative Humidity Operating
Altitude: 6500 ft Maximum Operating

Cisco CISCO2650-DC Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Desktop
Form Factor: Wall-mountable
Dimensions: 1.69 Height x 17.5 Width x 11.8 Depth
Shipping Dimensions: 6 Height x 1 Width x 0.13 Depth
Weight: 10.25 lb
