CISCO2611XM-ADSL

Manufacturer Part#: Cisco CISCO2611XM-ADSL

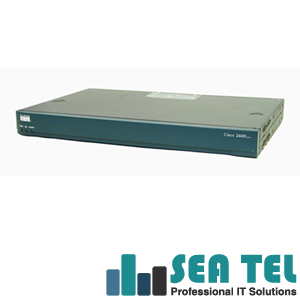

CISCO2611XM-ADSL Cisco 2600 Series Multiservice Router Platform

CISCO2611XM-ADSL - Router - 1 x AIM, 1 x Network Module - 2 x 10/100Base-TX LAN

Cisco 2600 series is an award-winning family of modular multiservice access routers, providing flexible LAN and WAN configurations, multiple security options, voice/data integration, and a range of high performance processors. This range of features make the Cisco 2600 family the ideal branch-office router for today's and tomorrow's customer requirements.

Cisco CISCO2611XM-ADSL General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2600
Product Name: 2611XM ADSL Router
Product Type: Router

Cisco CISCO2611XM-ADSL Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management

Cisco CISCO2611XM-ADSL Media & Performance:
Connectivity Media: Twisted Pair
Distance Support: 328 ft UTP
Forwarding/Filtering Rate: 20Kpps

Cisco CISCO2611XM-ADSL I/O Expansions:
Number of Expansion Slots: 4
Expansion Slots: (1 Total) AIM
Expansion Slots: (2 Total) WIC
Expansion Slots: (1 Total) Network Module
Modules: 1 x WIC-1ADSL ADSL WIC

Cisco CISCO2611XM-ADSL Management & Protocols:
Management:
SNMP
RMON
SNMP
RMON

Protocols: IP Multicast
Protocols: TCP/IP
Protocols: OSPF
Protocols: BGP
Protocols: RADIUS
Protocols: RSVP
Protocols: NAT

Cisco CISCO2611XM-ADSL Processor & Chipset:
Processor: 1 40MHz

Cisco CISCO2611XM-ADSL Memory:
Standard Memory: 256MB
Maximum Memory: 256MB
Memory Technology: DRAM
Flash Memory: 32 MB

Cisco CISCO2611XM-ADSL Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 1.5A
Frequency: 50 Hz or 60 Hz
Power Consumption: 50W
Power Source: AC Adapter

Cisco CISCO2611XM-ADSL Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -40 degrees F (-40.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Relative Humidity Operating
Altitude: 6500 ft Maximum Operating
Thermal Dissipation: 260 BTU/h

Cisco CISCO2611XM-ADSL Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Wall-mountable
Form Factor: Desktop
Dimensions: 1.69 Height x 17.5 Width x 11.8 Depth
Weight: 10.25 lb
