CISCO1751

Manufacturer Part#:  CISCO1751

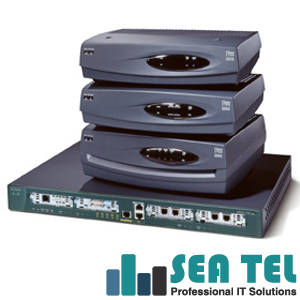

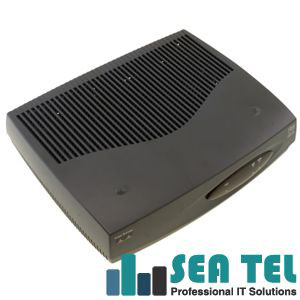

CISCO1751 1700 Series Modular Access Router

CISCO1751 - Access Router - 1 x 10/100Base-TX LAN

Cisco CISCO1751 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1700
Product Name: 1751 Modular Access Router
Product Type: Access Router

Cisco CISCO1751 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management

Cisco CISCO1751 Media & Performance:
Connectivity Media: Category 5 UTP 10/100Base-TX
Connectivity Media: Category 3 UTP 10Base-T
Connectivity Media: Category 4 UTP 10Base-T
Connectivity Media: STP 100Base-TX
Distance Support: 328.08 ft

Cisco CISCO1751 I/O Expansions:
Number of Expansion Slots: 4
Expansion Slots: (1 Total
Expansion Slots: (1 Total) VIC
Expansion Slots: (2 Total) VIC/WIC

Cisco CISCO1751 Processor & Chipset:
Processor: 1 x Motorola MPC860P PowerQUICC 48MHz RISC

Cisco CISCO1751 Memory:
Standard Memory: 64MB
Maximum Memory: 128MB
Memory Technology: DRAM
Flash Memory: 32 MB

Cisco CISCO1751 Controls/Indicators:
Controls: 1 x Power Switch

Cisco CISCO1751 Software:
Operating System:
Cisco 1700 IOS IP BASE Release 12.1.(5)YB
Cisco 1700 IOS IP BASE Release 12.1.(5)YB

Cisco CISCO1751 Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 5V DC
Frequency: 50 Hz or 60 Hz
Power Consumption: 20W Maximum
Power Source: AC Adapter

Cisco CISCO1751 Environmental Conditions:
Temperature: -20 degrees C (-4.0 degrees F) to 65 degrees C (149.0 degrees F) Non-operating
Temperature: 0 degrees C (32.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
Humidity: 5% to 95% Non-condensing Relative Humidity Non-operating
Humidity: 10% to 85% Non-condensing Relative Humidity Operating

Cisco CISCO1751 Physical Characteristics:
Form Factor: Wall-mountable
Dimensions: 4 Height x 11.2 Width x 8.7 Depth
Weight: 3.5 lb
