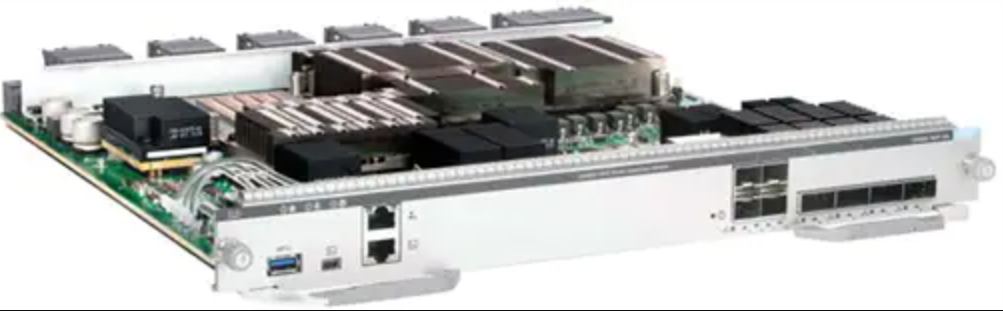

C9400-SUP-1

The Cisco Catalyst C9400-SUP-1 supervisor engine is a high-performance module designed for use with the Cisco Catalyst 9400 series switches. This supervisor engine provides centralized control and management over multiple line cards in a modular switch chassis. It features innovative hardware and software capabilities designed to deliver high scalability, flexibility, and reliability for enterprise-level data centers.

Technical Specifications:

1. Forwarding rate: Up to 720 million packets per second (mpps)
2. Switching capacity: Up to 11.4 Tbps
3. Supported protocols: EIGRP, OSPF, BGP, IS-IS, PIM, IGMP, DHCP, and others
4. Operating temperature: 0°C to 40°C
5. Power consumption: 250 watts (max)
6. Redundancy: 1+1 supervisor engine redundancy

The Cisco Catalyst C9400-SUP-1 provides high scalability and resiliency for mission-critical enterprise applications. It features high-speed forwarding, hardware packet classification and forwarding, as well as advanced quality of service (QoS) capabilities. Additionally, this supervisor engine supports hot-swappable redundant power supplies, making it a reliable and cost-effective networking solution. Overall, the Cisco Catalyst C9400-SUP-1 delivers improved efficiency, reduced operational costs, and simplified network operations.
