C9400-LC-48T
Cisco Catalyst 9400 Series Switch RJ-45 Data Line Card

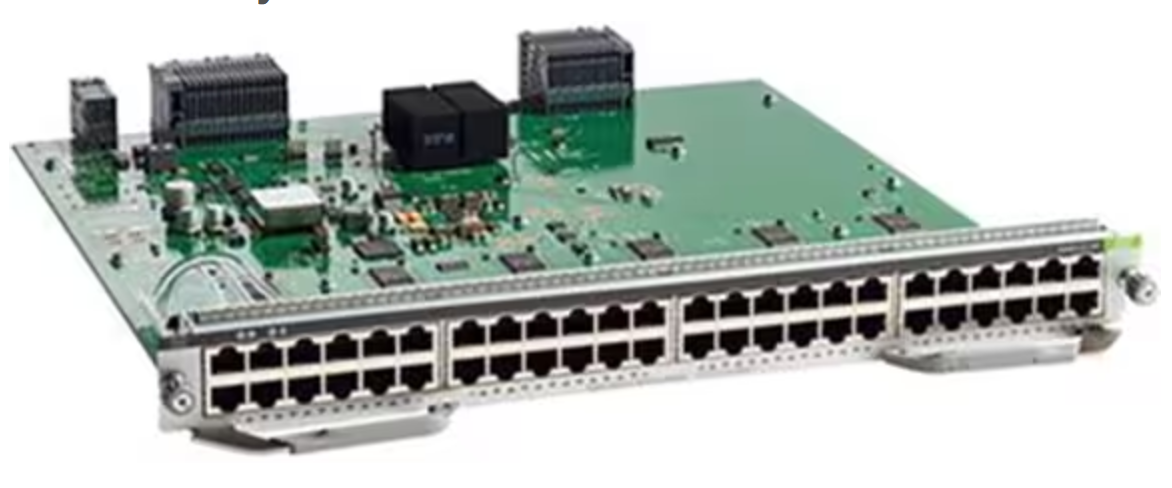

Cisco Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45) Line Card (C9400-LC-48T)
C9400-LC-48T Features
● Supports up to 48 ports nonblocking
● 10/100/1000 module (RJ-45)
● Supported on Cisco IOS XE Software Release 16.6.1 or later
● Energy Efficient Ethernet 802.3az
● IEEE 802.1AE (MACsec-256) capability in hardware
● Layer 2 to Layer 4 Jumbo Frame support up to 9216 bytes
● Enterprise and commercial design for data only user access
● Ideal for campus and branch applications requiring enhanced performance for large file transfers and network backups
Bandwidth per slot by chassis for C9400-LC-48T line card
Supervisor |
|
Chassis C9404R |
Chassis C9407R |
Chassis C9410R |
C9400 Supervisor Engine-1 (C9400-SUP-1) |
Bandwidth per slot |
80 Gbps |
80 Gbps |
80 Gbps |
Oversubscription |
1:1 |
1:1 |
1:1 |
|
C9400 Supervisor Engine-1XL (C9400-SUP-1XL) |
Bandwidth per slot |
240 Gbps |
120 Gbps |
80 Gbps |
Oversubscription |
1:1 |
1:1 |
1:1 |
|
C9400 Supervisor Engine-1XL-Y (C9400-SUP-1XL-Y) |
Bandwidth per slot |
240 Gbps |
120 Gbps |
80 Gbps |
Oversubscription |
1:1 |
1:1 |
1:1 |
|
C9400 Supervisor Engine-2XL (C9400X-SUP-2XL) |
Bandwidth per slot |
480 Gbps |
480 Gbps |
480 Gbps |
Oversubscription |
1:1 |
1:1 |
1:1 |
|
C9400 Supervisor Engine-2 (C9400X-SUP-2) |
Bandwidth per slot |
240 Gbps |
240 Gbps |
240 Gbps |
Oversubscription |
1:1 |
1:1 |
1:1 |
