C6800-SUP6T-XL

Cisco C6800-SUP6T-XL (440G/slot) with 8x10GE, 2x40GE (XL) Supervisor Engine

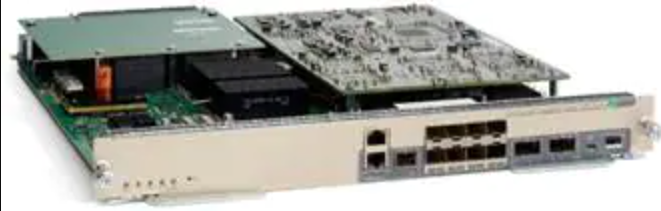

Cisco Catalyst C6800-SUP6T-XL is a high-performance supervisor engine module designed for deployment in enterprise-level data center and campus switching networks. It provides centralized control and management over multiple line cards in a modular switch chassis. This supervisor engine features a 6-terabit-per-second (Tbps) forwarding capacity and is designed to be scalable and highly resilient.

The Cisco C6800-SUP6T-XL is a powerful enterprise-level supervisor engine that delivers enhanced features, performance, and security capabilities compared to previous generation supervisor engines. It features a quad-core Intel processor with a robust memory architecture, providing the necessary processing power for high-speed forwarding and advanced software features.

With support for advanced Cisco IOS features such as Virtual Switching System (VSS) technology, the C6800-SUP6T-XL enables two supervisor modules to operate as a single virtual switch to offer highly available and fault-tolerant network environments. It also offers support for Cisco TrustSec, providing secure network access by delivering identity-based access control, deployment flexibility, and secure network segmentation

C6800-SUP6T-XL Specifications:

The Cisco Catalyst C6800-SUP6T-XL supervisor engine module has the following specifications:

• Provides up to 2 terabits per second (Tbps) per system switching capacity.
• Up to 720 million packets per second (mpps) forwarding rate per system
• Hardware-based forwarding for IPv4, IPv6, and MPLS traffic
• Supports OpenFlow 1.3 and 1.4 for software-defined networking (SDN) capabilities
• Offers advanced QoS capabilities with 8 queues per port and support for different queuing algorithms including Weighted Round Robin (WRR) and Class-Based Weighted Fair Queuing (CBWFQ)
• Supports up to 64,000 entries for routing, 128,000 entries for forwarding and 128,000 entries for multicast.
• Has 2 Gigabytes of DRAM with 8 Gigabytes of flash storage.
• Offers advanced security features such as hardware-based support for MACsec encryption, Secure Boot, and Identity Services Engine (ISE) integration.
• Multichassis EtherChannel (MEC) support for distributing bundles of links across multiple switches and Virtual Switching System (VSS) technology for holistic redundancy and reliability

The Cisco Catalyst C6800-SUP6T-XL supervisor engine module provides high-density, high-performance switching capabilities for demanding applications such as data warehousing, server virtualization, and cloud computing. With support for advanced features such as OpenFlow, hardware-based forwarding, and advanced QoS capabilities, this switch module is an ideal solution for organizations seeking to optimize their network infrastructure for the most demanding applications.
