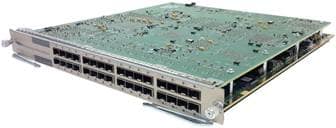

C6800-32P10G-XL=

Cisco Catalyst C6800-32P10G-XL is a high-performance, 32-port 10 Gigabit Ethernet switch module that is designed for deployment in enterprise-level data centers and high-performance computing environments. With support for up to 480 Gbps of aggregate switching capacity, this switch module is capable of delivering the high-performance connectivity required for demanding applications such as data warehousing, server virtualization, and cloud computing. It features advanced Cisco IOS software features such as Virtual Switching System (VSS) technology, which enables two switches to operate as a single virtual switch with higher resiliency and uptime. Additionally, the C6800-32P10G-XL supports the Cisco TrustSec security architecture, providing a comprehensive solution for protecting sensitive data and ensuring regulatory compliance. With its advanced features and high-performance capabilities, the Cisco C6800-32P10G-XL is an ideal solution for organizations seeking to optimize their network infrastructure for the most demanding applications.

Cisco Catalyst C6800-32P10G-XL switch module has the following specifications:

• 32 ports of 10 Gigabit Ethernet (10GBASE-T or SFP+)
• Up to 480 Gbps switching capacity
• Port-to-port latency of 1-2 microseconds
• Supports up to 4,096 VLANs and 12,000 MAC addresses
• Supports Cisco VSS technology, enabling two switches to act as a single logical switch with no downtime
• Supports Cisco TrustSec security architecture for access control and policy enforcement
• Hot-swappable, redundant power supplies for added resiliency
• Dimensions (H x W x D): 1.73 in x 15.4 in x 22.5 in
• Weight: 16 lbs

The switch module is designed to work with the Cisco Catalyst 6800 series modular switches and can be installed in any of the available slots. It offers high-performance connectivity, advanced features, and high reliability for enterprise-level data centers and high-performance computing environments.
