Manufacturer Part#: Cisco AIR-LAP1310G-E-K9

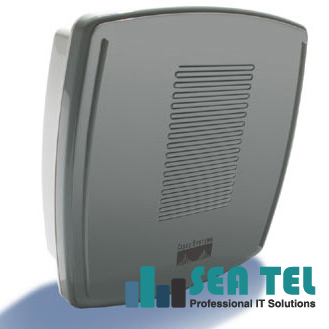

AIR-LAP1310G-E-K9 Cisco Wireless Access Point (AP)
AIR-LAP1310G-E-K9 - Wireless Access Point - 54Mbps - 1 x 10/100Base-TX , 1 x
Cisco Aironet AIR-LAP1310G Outdoor Access Point is an 802.11g access point that provides high-speed and cost-effective wireless connectivity between multiple fixed or mobile networks and clients. Building a metropolitan-area wireless infrastructure with the Aironet Outdoor Access Point provides deployment personnel with a flexible, easy-to-use solution that meets the security requirements of wide-area networking professionals. The Aironet AIR-LAP1310G Outdoor Access Point can be deployed as an autonomous access point, providing intelligent network services as a standalone device.
Cisco AIR-LAP1310G-E-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1300
Product Model: AIR-LAP1310G
Product Name: Aironet AIR-LAP1310G Outdoor Access Point
Product Type: Wireless Access Point
Cisco AIR-LAP1310G-E-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11b/g
ISM Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.472 GHz
Antenna Gain: 13 dBi
Antenna Type: Directional Antenna
Outdoor Antenna Range: 775 ft
Channels: 3 Channel Non-overlapping
Channels: 13 Channel Operating IEEE 802.11b/g ETSI
Wireless Transmission Speed: 54 Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11g
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 6Mbps IEEE 802.11g
Transmission Speed Details: 1Mbps IEEE 802.11b
Modulation:
IEEE 802.11g:
•Orthogonal Frequency Divisional Multiplexing (OFDM)
•BPSK: 6 and 9 Mbps
•QPSK: 12 and 18 Mbps
•6-quadrature amplitude modulation (QAM): 24 and 36 Mbps
•64-QAM: 48 and 54 Mbps
IEEE 802.11b:
•Direct Sequence Spread Spectrum (DSSS)
•Differential Binary Phase Shift Keying (DBPSK): 1 Mbps
•Differential Quadrature Phase Shift Keying (DQPSK): 2 Mbps
•Complementary Code Keying (CCK): 5.5 and 11 Mbps
Cisco AIR-LAP1310G-E-K9 Interfaces/Ports:
Number of Ports: 3
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 2 x F-Type
Cisco AIR-LAP1310G-E-K9 Management & Protocols:
Management:
SNMP Compliance: Versions 1 and 2
Telnet
FTP
SNMP Compliance: Versions 1 and 2
Telnet
FTP
Security Features:
Message Integrity Check (MIC)
Cisco AIR-LAP1310G-E-K9 Physical Characteristics:
Dimensions: 3.12 Height x 8.1 Width x 8 Depth
Weight: 2.5 lb
