Manufacturer Part#: Cisco AIR-LAP1142N-E-K9

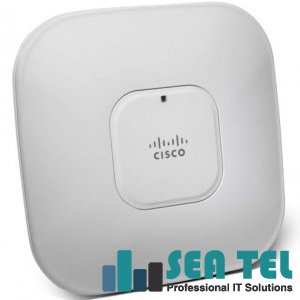

AIR-LAP1142N-E-K9 Cisco Wireless Access Point (AP)
AIR-LAP1142N-E-K9 - Wireless Access Point
The Cisco Aironet 1142N Access Point is a business ready, indoor access point designed for simple deployment and energy efficiency. This is a dual-band, 802.11n access point with integrated antennas. It may also be ordered with a single-band 802.11g/n (2.4-GHz) radio for use in regulatory domains that do not allow 802.11a (5-GHz) operation.
Cisco AIR-LAP1142N-E-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11n (draft)
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.462 GHz
UNII Minimum Frequency: 5.18 GHz
UNII Maximum Frequency: 5.82 GHz
Antenna Gain: 3 dBi
Antenna Gain: 4 dBi
Wireless Transmission Speed: 300 Mbps
Cisco AIR-LAP1142N-E-K9 Interfaces/Ports:
Number of Ports: 1
Gigabit Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 10/100/1000Base-T LAN
Cisco AIR-LAP1142N-E-K9 Power Description:
Input Voltage Range: 44V DC to 57V DC
Power Source: Power Supply
Cisco AIR-LAP1142N-E-K9 Physical Characteristics:
Form Factor: Ceiling-mountable
Form Factor: Wall-mountable
Dimensions: 1.84 Height x 8.7 Width x 8.7 Depth
Weight: 2.3 lb
Cisco AIR-LAP1142N-E-K9 Miscellaneous:
Wi-Fi Multimedia (WMM)
Cisco Unified Wireless Network Software Release 5.2 or later
Wi-Fi Multimedia (WMM)
Cisco Unified Wireless Network Software Release 5.2 or later
