Manufacturer Part#: Cisco AIR-LAP1121G-A-K

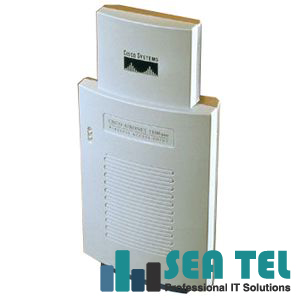

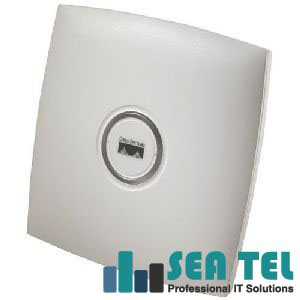

AIR-LAP1121G-A-K Cisco Wireless Access Point (AP)
AIR-LAP1121G-A-K Wireless Access Point - 54Mbps
The Cisco Aironet 1121G Wireless Access Point provides a high-speed, secure, affordable, and easy-to-use wireless LAN solution that combines the freedom and flexibility of wireless networking with the features and services required in enterprise networks
Cisco AIR-LAP1121G-A-K General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1100
Product Model: 1121G
Product Name: Aironet 1121G Wireless Access Point
Packaged Quantity: 1
Product Type: Wireless Access Point
Cisco AIR-LAP1121G-A-K Technical Information:
Wi-Fi Standard: IEEE 802.11b/g
ISM Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.462 GHz
Antenna Gain: 2.2 dBi
Antenna Type: Diversity Dipole Antenna
Indoor Antenna Range: 110 ft
Outdoor Antenna Range: 700 ft
Channels: 11 Channel Operating IEEE 802.11b/g America (FCC)
Channels: 3 Channel Non-overlapping
Wireless Transmission Speed: 54 Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11g
Transmission Speed Details: 1Mbps IEEE 802.11b
Transmission Speed Details: 6Mbps IEEE 802.11g
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Modulation:
•CCK
•OFDM
Cisco AIR-LAP1121G-A-K Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN
Cisco AIR-LAP1121G-A-K Management & Protocols:
Management:
•SNMP
•QoS
•DHCP
Security Features:
•AES
•TKIP
Cisco AIR-LAP1121G-A-K Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 33V DC to 57V DC
Power Source: Power Supply
Cisco AIR-LAP1121G-A-K Physical Characteristics:
Form Factor: Wall-mountable
Form Factor: Ceiling-mountable
Dimensions: 8.1 Height x 4.1 Width x 1.5 Depth
