AIR-AP1232AG-P-K9

Manufacturer Part#: Cisco  AIR-AP1232AG-P-K9

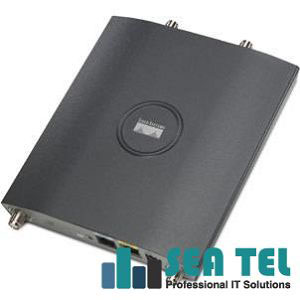

AIR-AP1232AG-P-K9 Cisco Wireless Access Point (AP)

AIR-AP1232AG-P-K9 - Wireless Access Point - 108Mbps

Cisco Aironet 1232AG Access Point delivers the versatility, high capacity, security, and enterprise-class features demanded by WLAN customers. This IEEE 802.11a/b/g access point is designed specifically for challenging RF environments such as factories, warehouses, and large retail establishments that require the antenna versatility associated with connectorized antennas, a rugged metal enclosure, and a broad operating temperature range.

Cisco AIR-AP1232AG-P-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1230AG
Product Model: 1232AG
Product Name: Aironet 1232AG Wireless Access Point
Packaged Quantity: 1
Product Type: Wireless Access Point

Cisco AIR-AP1232AG-P-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
UNII Maximum Frequency: 5 GHz
Antenna Connector: Dual RP-TNC Connector
Indoor Antenna Range: 500 ft
Outdoor Antenna Range: 950 ft
Channels: 3 Channel Non-overlapping IEEE 802.11b/g Japan (TELEC 2)
Channels: 13 Channel Operating IEEE 802.11b/g Japan (TELEC 2)
Wireless Transmission Speed: 108 Mbps
Transmission Speed Details: 108Mbps 2x Mode
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a/g
Transmission Speed Details: 6Mbps IEEE 802.11a/g
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 1Mbps IEEE 802.11b

Cisco AIR-AP1232AG-P-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink

Cisco AIR-AP1232AG-P-K9 Management & Protocols:
Management:
CiscoWorks

Security Features:
AES

Cisco AIR-AP1232AG-P-K9 Power Description:
Input Voltage: 48 V DC
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 90V AC to 240V AC
Power Source: Power Supply

Cisco AIR-AP1232AG-P-K9 Physical Characteristics:
Dimensions: 1.66 Height x 6.56 Width x 7.23 Depth
Weight: 1.73 lb
