AIR-AP1120B-AK9NFR
AIR-AP1120B-AK9NFR

AIR-AP1120B-AK9NFR

Product ID : Cisco Wireless AP
Product Description
Manufacturer Part#: Cisco AIR-AP1120B-AK9NFR

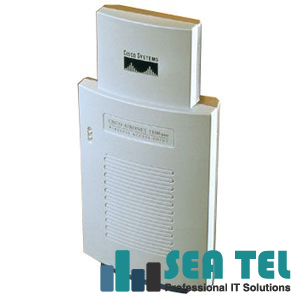

AIR-AP1120B-AK9NFR Cisco Wireless Access Point (AP)

AIR-AP1120B-AK9NFR - Wireless Access Point - 11Mbps - 1 x 10/100Base-TX

 AIR-AP1120B-AK9NFR Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink

Cisco AIR-AP1120B-AK9NFR Media & Performance:
Connectivity Media: Twisted Pair
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 10Mbps Ethernet

Cisco AIR-AP1120B-AK9NFR Management & Protocols:
Management:
Support for Cisco Discovery Protocol, SNMP standard MIB I and MIB II
Cisco CLI supports Telnet, FTP, and TFTP
Cisco Structured Wireless-Aware Network
Support for Cisco Discovery Protocol, SNMP standard MIB I and MIB II
Cisco CLI supports Telnet, FTP, and TFTP
Cisco Structured Wireless-Aware Network

Protocols: DHCP
Protocols: HTTP
Protocols: Telnet
Protocols: FTP
Protocols: TFTP
Operating System:
Cisco 1100 Series IOS WIRELESS LAN (S11W7K9-12211JA)
Cisco 1100 Series IOS WIRELESS LAN (S11W7K9-12211JA)

Cisco AIR-AP1120B-AK9NFR Memory:
Memory: 16MB RAM Installed
Memory: 8MB Flash Memory Installed

Cisco AIR-AP1120B-AK9NFR Storage:
Storage: Not Applicable

Cisco AIR-AP1120B-AK9NFR Controls/Indicators:
Status Indicators: Three indicators on the top panel:
•Ethernet traffic
•Status
•Radio traffic

AIR-AP1120B-AK9NFR Power
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 33V DC to 57V DC
Input Current: 150 mA
Frequency: 50 Hz to 60 Hz
Power Consumption: 4.9W Operating
Power Source: Power Supply

AIR-AP1120B-AK9NFR Environmental Conditions:
Temperature: -40 degrees F (-40.0 degrees C) to 185 degrees F (85.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 10% to 90% Non-condensing Operating

Cisco AIR-AP1120B-AK9NFR Physical Characteristics:
Dimensions: 8.1 Height x 4.1 Width x 1.5 Depth
Shipping Dimensions: 4.5 Height x 9 Width x 17 Depth
Weight: 10.5 oz
Shipping Weight: 1 lb
