7300-4OC3POS-SMI

Manufacturer Part#: Cisco 7300-4OC3POS-SMI
7300-4OC3POS-SMI Cisco Interface & Line Card

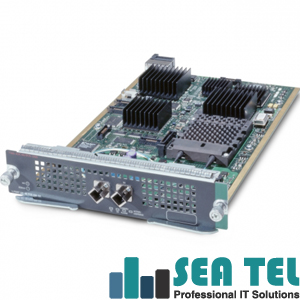

7300-4OC3POS-SMI - 4-port OC3 POS line card for Cisco 7304 w/ Single-mode IR

Cisco OC-3c/STM-1 POS/SDH Line Card in four ports, is a modular, versatile card suited for a variety of solutions, from WAN uplinks in a CPE deployment to aggregation at the edge where service provider and enterprise networks meet. Using the Cisco Network Services Engine (NSE)-100 Route Processor on the Cisco 7304 Router, this line card can use multiprotocol capability from Cisco IOS Software, and PXF technology to deliver hardware-accelerated IP network services.

Cisco 7300-4OC3POS-SMI General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: 4-Port OC-3c/STM-1 POS/SDH Line Card
Product Type: Line Card

Cisco 7300-4OC3POS-SMI Interfaces/Ports
Interfaces/Ports: 4 x OC-3c/STM-1
Interfaces/Ports Details: 4 x MT-RJ OC-3c/STM-1

Cisco 7300-4OC3POS-SMI Media & Performance
Connectivity Media: Single-mode Fiber
Distance Support: 15 km Single-mode Fiber
Data Transfer Rate: 155.52Mbps OC-3c/STM-1

Cisco 7300-4OC3POS-SMI Controls/Indicators
Status Indicators:
LC Status
OIR
Carrier/Alarm
Port Active/Loopback
LC Status
OIR
Carrier/Alarm
Port Active/Loopback
Cisco 7300-4OC3POS-SMI Reliability
MTBF: 5.5 Year

Cisco 7300-4OC3POS-SMI Environmental Conditions
Temperature: 0 degrees C (32.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
Temperature: -20 degrees C (-4.0 degrees F) to 65 degrees C (149.0 degrees F) Storage
Humidity: 5% to 90% Non-condensing Relative Humidity
Altitude: -500 ft to 6500 ft

Cisco 7300-4OC3POS-SMI Physical Characteristics
Form Factor: Hot-pluggable
Weight: 3 lb
