Manufacturer Part#: Cisco WS-X6148-45AF
WS-X6148-45AF Interface & Line Card

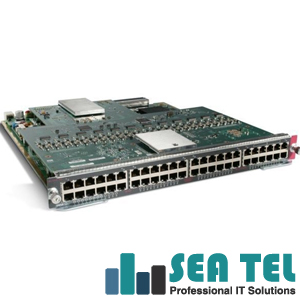

WS-X6148-45AF - Catalyst 6500 PoE 802.3af 10/100, 48 port(RJ45) line card
Cisco Catalyst 6500 Series provides the broadest selection of 10/100 Ethernet media, Power over Ethernet (PoE) (inline power) options, densities, performance, interoperability, and chassis deployment options. From basic wiring closets and small campus distribution and core layers to high performance data centers, the Cisco Catalyst 6500 Series Fast Ethernet Interface Module provides 48 ports.
Cisco WS-X6148-45AF General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 6500
Product Name: Catalyst 6500 Series Line Card
Product Type: Line Card
Cisco WS-X6148-45AF Interfaces/Ports:
Interfaces/Ports: 48 x 10/100Base-TX LAN
Interfaces/Ports Details: 48 x RJ-45 10/100Base-TX LAN
Cisco WS-X6148-45AF Media & Performance:
Connectivity Media: Category 5 UTP 10/100Base-TX
Distance Support: 328.08 ft Category 5 UTP
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 10Mbps Ethernet
Cisco WS-X6148-45AF I/O Expansions:
Daughter Cards: 1 x 802.3af PCE
Cisco WS-X6148-45AF Memory:
Memory: 128KB Buffer Memory per Port
Cisco WS-X6148-45AF Physical Characteristics:
Shipping Dimensions: 7.5 Height x 21.5 Width x 22.75 Depth
Shipping Weight: 15.55 lb
Cisco WS-X6148-45AF Additional Information:
•Primary Application:
Base Wiring Closet
•Interface Module Class:
Classic
•Power over Ethernet Support:
Supports Cisco pre-standard inline power
IEEE 802.3af Power over Ethernet
•Queues per Port (Tx =Transmit, Rx = Receive):
Tx-2q2t, Rx-1q4t
•Scheduler:
WRR
•Max Power Per Port:
15.4W
WS-X6148-45AF Compatibility: Cisco Catalyst 6500 Series
Certifications & Standards:
•IEEE 802.3
•IEEE 802.3af
Cisco WS-X6148-45AF Original Manufacturer Warranty:
Standard Warranty: 90 Day
