WS-X6716-10G-3C

Manufacturer Part#: Cisco WS-X6716-10G-3C

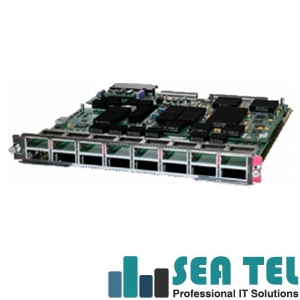

WS-X6716-10G-3C Cisco Module

WS-X6716-10G-3C - 16 x X2 - 1 x - Expansion Module
Cisco Catalyst 6500 (WS-X6716-10G-3C) 16-Ports Plug-in Module Ethernet Module

Cisco 16-Port 10 Gigabit Ethernet Module with DFC3C - expansion module - 16 ports

The 16-port 10 Gigabit Ethernet module provides up to 130 10 Gigabit Ethernet ports in a single Cisco Catalyst 6500 chassis and 260 10 Gigabit Ethernet ports in a virtual switching system (VSS) and is targeted for LAN campus aggregation and data center access, where fan-out and port density are very important. It consists of 4 port groups of 4 ports each. Users can operate each port group in either oversubscription mode (2 to 4 ports used per port group) or performance mode (1 port used per port group), allowing maximum flexibility for using some ports for connection to servers in performance mode and some other uplinks to wiring closets in oversubscription mode. When in performance mode, up to four 10 Gigabit Ethernet ports can be used to create a virtual switch link in a VSS.1 In addition, the 16-port 10 Gigabit Ethernet module has reduced power consumption. It uses half the power per port compared to the 8-port 10 Gigabit Ethernet module, providing substantial power savings to the customer.

Part Code: WS-X6716-10G-3C
•Manufacturer: Cisco
•Device Type: Expansion module
•Form Factor: Plug-in module
•Dimensions (WxDxH): 35.6 cm x 40.6 cm x 3 cm
•Weight: 5.6 kg

In Stock & Ready to Ship

WS-X6716-10G-3C 16-port 10 Gigabit Ethernet module provides up to 130 10 Gigabit Ethernet ports in a single Cisco Catalyst 6500 chassis and 260 10 Gigabit Ethernet ports in a virtual switching system (VSS) and is targeted for LAN campus aggregation and data center access, where fanout and port density are very important. It consists of 4 port groups of 4 ports each. Users can operate each port group in either over subcription mode (2 to 4 ports used per port group) or performance mode (1 port used per port group), allowing maximum flexibility for using some ports for connection to servers in performance mode and some other uplinks to wiring closets in over subscription mode. When in performance mode, up to four 10 Gigabit Ethernet ports can be used to create a virtual switch link in a VSS.1 In addition, the 16-port 10 Gigabit Ethernet module has reduced power consumption. It uses half the power per port compared to the 8-port 10 Gigabit Ethernet module, providing substantial power savings to the customer.

Cisco WS-X6716-10G-3C General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: 16-Port 10 Gigabit Ethernet Module
Product Type: Expansion Module

Cisco WS-X6716-10G-3C Interfaces/Ports
Interfaces/Ports: Not Applicable
Interfaces/Ports Details: Not Applicable

Cisco WS-X6716-10G-3C Media & Performance
Data Transfer Rate: 40Gbps Gigabit Ethernet

Cisco WS-X6716-10G-3C I/O Expansions
Expansion Slots: 16 x X2
Daughter Cards: 1 x DFC3C

Cisco WS-X6716-10G-3C Physical Characteristics
Dimensions: 1.2 Height x 14.4 Width x 16 Depth
Weight: 13 lb - Excluding X2s

WS-X6716-10G-3C  Product Details
Device Type Expansion module
Form Factor Plug-in module
Dimensions (WxDxH) 35.6 cm x 40.6 cm x 3 cm
Weight 5.6 kg
Ports Qty 16 ports
Cabling Type Ethernet 10GBase-X
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak
Designed For Catalyst 6503-E, 6504-E, 6506, 6506-E, 6506-E IDSM-2, 6509, 6509-E, 6509-E 10Gig, 6509-NEB, 6509-NEB-A, 6509-V-E, 6513, 6513 10Gig

WS-X6716-10G-3C  General
Device Type Expansion module - 16 ports
Form Factor Plug-in module
Width 35.6 cm
Depth 40.6 cm
Height 3 cm
Weight 5.6 kg

 WS-X6716-10G-3C Networking
Connectivity Technology Wired
Cabling Type Ethernet 10GBase-X
Data Link Protocol 10 Gigabit LAN
Data Transfer Rate 10 Gbps
Remote Management Protocol RMON
Status Indicators Port status, status
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak

WS-X6716-10G-3C Expansion / Connectivity
Expansion Slot(s) 16 (total) / 16 (free) x X2
Compatible Slots 1 x Expansion Slot

WS-X6716-10G-3C  Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, EN 60950, VCCI Class A ITE, IEC 60950, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, FCC CFR47 Part 15

WS-X6716-10G-3C  Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 10 - 90%

WS-X6716-10G-3C  Compatibility Information
Designed For Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506, 6506 chassis, 6506 Firewall Security System, 6506 Firewall Security System with Enhanced Chassis, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509, 6509 chassis, 6509 Firewall and IDS Security System, 6509 Firewall and VPN Security System, 6509 Wiring Closet Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Firewall Security System Bundle, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with WiSM Bundle, 6509-NEB, 6509-NEB-A, 6509-V-E, 6513, 6513 10Gig Firewall Security System Bundle, 6513 chassis, 6513 Chassis with Supervisor Engine 32, 6513 Firewall Security System, 6513 IPSec VPN SPA Security System

WS-X6716-10G-3C Technical Specs:
Ports: 16
Optics: X2
Switch Fabric Connection: 40 Gbps  (80 Gbps full duplex)
Oversubscription: 4:1
Forwarding Engine: For distributed forwarding, this module comes equipped with DFC3C; supports 256K routes
Jumbo Frame Support: Up to 9216 bytes
Memory: 1GB onboard by default
Queues in Performance Mode: •Receive: 8q4t per port
•Transmit: 1p7q4t per port

WS-X6716-10G-3C Queues in Oversubscription Mode: •Receive: 1p7q2t per port
•Transmit: 1p7q4t per port group

Queuing Mechanisms: CoS-based queue mapping (Class of service), with DSCP-based queue mapping (Differentiated Services Code Point )
Scheduler in Performance Mode: •Deficit Weighted Round Robin (DWRR)
•Shaped Round Robin (SRR) at egress
• Weighted Random Early Detection (WRED)

WS-X6716-10G-3C Scheduler in Oversubscription Mode: •Deficit Weighted Round Robin (DWRR)
•Weighted Random Early Detection (WRED)

Port Buffers in Performance Mode: 200 MB (per port)
Port Buffers in Oversubscription Mode: 90 MB (per port)
LAYER 3 — Hardware-based Multicast Replication: •Ingress and egress
•Approx. 20GB per replication engine
•Two replication engines per module

LAYER 2 — Hardware-based Multicast Replication: •Ingress and egress
•Approx. 20GB per replication engine
•Two replication engines per module

WS-X6716-10G-3C Max. Port Density: •Per Chassis: 130-ports (9-slot chassis)
•Per VSS: 260-ports

Supervisor Engines Supported: •Cisco Catalyst 6500 Series Virtual Switching Supervisor Engine 720 with 10GE uplinks
•Cisco Catalyst 6500 Series Virtual Switching Supervisor Engine 720 with any PFC (chassis will work in lowest common denominator mode)

Virtual Switch Link Capability: •Performance Mode: Yes
•Oversubscription Mode: No

Chassis Supported: •All Catalyst 6500 E-Series chassis, including 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E and C6509-NEB-A chassis with dual fan tray
•Non-E-Series chassis with fan tray 2, including Cisco Catalyst 6506, 6509, 6513 and C6509-NEB-A with single fan tray
•Please note, this Module (WS-X6716-10G-3C) is NOT SUPPORTED in Cisco Catalyst 6503 non-E Series chassis and 7600 Series chassis

WS-X6716-10G-3C Slot Requirements:
Can occupy any slot in any Cisco Catalyst 6503-E, 6504-E, 6506, 6506-E, 6509, 6509-E, 6509-V-E, or 6509-NEB-A chassis; can occupy only slots 9 through 13 in a Cisco Catalyst 6513 chassis
Standard Protocols: IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, and IEEE 802.3an
EMI Standards:  FCC Part 15 (CFR 47) Class A , ICES-003 Class A , VCCI Class A , EN55022 Class A , EN55024 , CISPR24 , CISPR 22 Class A , AS/NZS , CISPR 22 Class A , ETS 300 386 , KN 22 Class A , EN 50082-1 , EN61000-3-2 , EN61000-3-3 , EN61000-6-1 , CNS13438 Class A , KN6100 -4 Series
Safety Standards:  UL 60950-1 , CAN/CSA C22.2 No. 60950 , EN 60950-1 , IEC 60950-1 , AS/NZS 60950-1 , IEC 60825 Class 1 , EN 60825 Class 1 , 21CFR 1040
Network Management: ETHERLIKE-MIB (RFC 1643) , IF-MIB (RFC 1573) , Bridge MIB (RFC 1493) , CISCO-STACK-MIB , CISCO-VTP-MIB , CISCO-CDP-MIB , RMON MIB (RFC 1757) , CISCO-PAGP-MIB , CISCO-STP-EXTENSIONS-MIB , CISCO-VLAN-BRIDGE-MIB , CISCO-VLAN-MEMBERSHIP-MIB , ENTITY-MIB (RFC 2037) , HC-RMON , RFC1213-MIB (MIB-II) , SMON-MIB

WS-X6716-10G-3C System Indicators:
Status Indicators: •Red — Faulty
•Green — Operational
•Orange — Module is Booting

WS-X6716-10G-3C Link Indicators:
•Orange — Port is disabled
•Green — Port is enabled and connected
•Off — Port is enabled, but not connected
