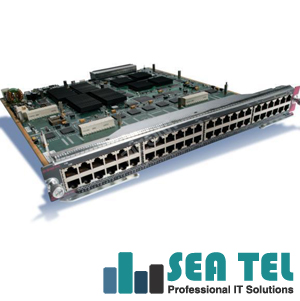

WS-X6548-GE-45AF

Manufacturer Part#: Cisco WS-X6548-GE-45AF
WS-X6548-GE-45AF Interface & Line Card

WS-X6548-GE-45AF - Cat 6500 PoE 802.3af 10/100/1000 48-port(RJ45)CEF256 card

Cisco Catalyst 6500 Series provides the broadest selection of 10/100 and 10/100/1000 Ethernet media, Power over Ethernet (PoE) (inline power) options, densities, performance, interoperability, and chassis deployment options. From basic wiring closets and small campus distribution and core layers to high-performance data centers, the Cisco Catalyst 6500 Series 10/100BASE-TX modules scale from 16 ports up to 1152 ports, and the 10/100/1000BASE-TX modules scale from 16 ports up to ports in a single Cisco Catalyst 6500 Series chassis.

Cisco WS-X6548-GE-45AF General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 6500
Product Name: Catalyst Switching Module
Product Type: Switching Module

Cisco WS-X6548-GE-45AF Interfaces/Ports:
Interfaces/Ports: 48 x 10/100/1000Base-T LAN
Interfaces/Ports Details: 48 x RJ-45 10/100/1000Base-T LAN

Cisco WS-X6548-GE-45AF Media & Performance:
Connectivity Media: Category 5 UTP/STP 10/100/1000Base-T
Distance Support: 328.08 ft Category 5 UTP/STP
Data Transfer Rate: 1Gbps Full-duplex
Data Transfer Rate: 100Mbps Fast Ethernet Half/Full-duplex
Data Transfer Rate: 10Mbps Ethernet Half/Full-duplex

Cisco WS-X6548-GE-45AF I/O Expansions:
Daughter Cards: 1 x WS-F6K-GE48-AF

Cisco WS-X6548-GE-45AF Management & Protocols:

Management:
•Network Management:
ETHERLIKE-MIB (RFC 1643)
IF-MIB (RFC 1573)
Bridge MIB (RFC 1493)
CISCO-STACK-MIB
CISCO-VTP-MIB
CISCO-CDP-MIB
RMON MIB (RFC 1757)
CISCO-PAGP-MIB
CISCO-STP-Extensions-MIB
CISCO-VLAN-Bridge-MIB
CISCO-VLAN-Membership-MIB
CISCO-UDLDP-MIB
CISCO-ENTITY-FRU-CONTROL-MIB
CISCO-COPS-CLIENT-MIB
ENTITY-MIB (RFC 2037)
HC-RMON
RFC1213-MIB (MIB-II)
SMON-MIB

Cisco WS-X6548-GE-45AF Controls/Indicators:
Status Indicators:
•Status
•Link good

Cisco WS-X6548-GE-45AF Environmental Conditions:
Temperature: -40 degrees C (-40.0 degrees F) to 75 degrees C (167.0 degrees F) Storage
Temperature: 0 degrees C (32.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
Humidity: 10% to 90% Non-condensing Relative Humidity Operating
Altitude: -196.84 ft to 13123.32 ft Operating

Cisco WS-X6548-GE-45AF Physical Characteristics:
Dimensions: 1.2 Height x 14.4 Width x 16 Depth
Shipping Dimensions: 7.5 Height x 21.25 Width x 22.5 Depth
Shipping Weight: 16 lb

Cisco WS-X6548-GE-45AF Original Manufacturer Warranty:
Standard Warranty: 90 Day Limited
