Manufacturer Part#: Cisco WS-X6324-100FX-MM

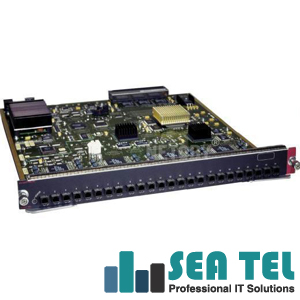

WS-X6324-100FX-MM Interface & Line Card
WS-X6324-100FX-MM - Catalyst 6000 24-port 100FX, Enh QoS, MT-RJ, MMF
Cisco Catalyst 6500 Series provides the 24-port Fast Ethernet Classic Interface Module and the selection of 100-Mbps media, density, interoperability, and chassis deployment option. The 24-port Fast Ethernet Classic Interface Module provides another alternative for the access and distribution layer and metropolitan (metro) access deployments.
Cisco WS-X6324-100FX-MM Memory:
Memory: 128KB Buffer Memory per Port Installed
Cisco WS-X6324-100FX-MM Controls/Indicators:
Status Indicators:
Status
Link good
Status
Link good
Cisco WS-X6324-100FX-MM Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -40 degrees F (-40.0 degrees C) to 167 degrees F (75.0 degrees C) Storage
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.84 ft to 13123.32 ft Operating
Cisco WS-X6324-100FX-MM Physical Characteristics:
Dimensions: 1.2 Height x 14.4 Width x 16 Depth
Shipping Dimensions: 7.5 Height x 21.5 Width x 22.5 Depth
Shipping Weight: 10.93 lb
Cisco WS-X6324-100FX-MM General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 6500
Product Name: Catalyst Switching Module
Product Type: Switching Module
Cisco WS-X6324-100FX-MM Interfaces/Ports:
Interfaces/Ports: 24 x 100Base-FX LAN
Interfaces/Ports Details: 24 x MT-RJ Female 100Base-FX Full-duplex LAN
Cisco WS-X6324-100FX-MM Media & Performance:
Connectivity Media: 62.5/125 micron Multi-mode Fiber
Distance Support: 1312.33 ft 62.5/125 micron Fiber Half-duplex
Distance Support: 1.24 Mile 62.5/125 micron Fiber Full-duplex
Data Transfer Rate: 100Mbps Fast Ethernet Half/Full-duplex
WS-X6324-100FX-MM Port Density/Chassis Model:
288 ports (Cisco Catalyst 6513)
192 ports (Cisco Catalyst 6509)
Forwarding: Centralized
Primary Applications: Access, Server Farm
Interface Module Class: Classic
Forwarding architecture: Use centralized CEF forwarding
Forwarding performance:Forward packets up to 15 Mpps per system
Fabric connection: Connect to the switch fabric using a 32-Gbps shared bus connection
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t
WS-X6324-100FX-MM Port Density/Chassis Model:
288 ports (Cisco Catalyst 6513)
192 ports (Cisco Catalyst 6509)
WS-X6324-100FX-MM System Requirements: Slot requirements:
•Can occupy any slot in any Cisco Catalyst 6500 Series chassis
WS-X6324-100FX-MM Compatibility:
Cisco Catalyst 6500 Series
WS-X6324-100FX-MM Supervisor Engine Supported:
Supervisor Engine 1A,
Supervisor Engine 2
Supervisor Engine 720
Cisco Catalyst 6500 Series
WS-X6324-100FX-MM Supervisor Engine Supported:
Supervisor Engine 1A,
Supervisor Engine 2
Supervisor Engine 720
WS-X6324-100FX-MM Certifications & Standards: Safety Compliance:
•UL 1950
•CSA-C22.2 No. 950
•EN 60950
•IEC 950
•AS/NZS 3260
•IEC 825
•EN 60825
•21CFR1040
WS-X6324-100FX-MM EMC Compliance:
•FCC Part 15 (CFR 47) Class A
•VCCI Class A with UTP, Class B with STP
•EN55022 Class A with UTP, Class B with STP
•CISPR 22 Class A with UTP, Class B with STP
•CE marking
•AS/NZS 3548 Class A with UTP, Class B with STP
WS-X6324-100FX-MM Standard Network Protocols:
•Fast Ethernet: IEEE 802.3, 100BASE-TX, and 100BASE-FX
•IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad
Cisco WS-X6324-100FX-MM Original Manufacturer Warranty:
Standard Warranty: 90 Day Limited
