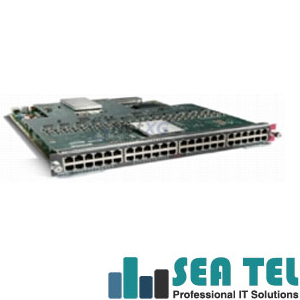

WS-X6148X2-RJ-45

Manufacturer Part#: Cisco WS-X6148X2-RJ-45
WS-X6148X2-RJ-45 Cisco Module

WS-X6148X2-RJ-45 - Cat6500 96-Port 10/100 (RJ45), Upgradable to PoE 802.3af

In Stock & Ready to Ship

The  96-port 10/100 module (WS-X6148X2-RJ-45) is the industry's first 96-port 10/100 RJ-45 module enabling theCatalyst 6500 Series to deliver industry's highest port densities ranging from 192 10/100 ports in a 6503 chassis to1152 10/100 ports in a 6513 chassis for a most cost effective solution in the wiring closet.

Cisco WS-X6148X2-RJ-45 General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 6500
Product Name: Catalyst Switching Module
Product Type: Switching Module

Cisco WS-X6148X2-RJ-45 Interfaces/Ports
Interfaces/Ports: 96 x 10/100Base-TX LAN
Interfaces/Ports Details: 48 x RJ-45 Connector
Interfaces/Ports Details: 96 x Port 10/100Base-TX LAN

Cisco WS-X6148X2-RJ-45 Media & Performance
Connectivity Media: Category 5 UTP 10/100Base-TX
Distance Support: 328.08 ft Category 5 UTP
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 10Mbps Ethernet

Cisco WS-X6148X2-RJ-45 I/O Expansions
Daughter Cards: 1 x WS-F6K-FE48X2-AF=

Cisco WS-X6148X2-RJ-45 Management & Protocols
Management:
•Network Management:
ETHERLIKE-MIB (RFC 1643)
IF-MIB (RFC 1573)
Bridge MIB (RFC 1493)
CISCO-STACK-MIB
CISCO-VTP-MIB
CISCO-CDP-MIB
RMON MIB (RFC 1757)
CISCO-PAGP-MIB
CISCO-STP-Extensions-MIB
CISCO-VLAN-Bridge-MIB
CISCO-VLAN-Membership-MIB
CISCO-UDLDP-MIB
CISCO-ENTITY-FRU-CONTROL-MIB
CISCO-COPS-CLIENT-MIB
ENTITY-MIB (RFC 2037)
HC-RMON
RFC1213-MIB (MIB-II)
SMON-MIB

Cisco WS-X6148X2-RJ-45 Controls/Indicators
Status Indicators:
•Status
•Link Good

Cisco WS-X6148X2-RJ-45 Environmental Conditions
Temperature: 0 degrees C (32.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
Temperature: -40 degrees C (-40.0 degrees F) to 75 degrees C (167.0 degrees F) Storage
Humidity: 10% to 90% Non-condensing Relative Humidity
Altitude: -196.84 ft to 13123.32 ft Operating

Cisco WS-X6148X2-RJ-45 Physical Characteristics
Dimensions: 1.2 Height x 14.4 Width x 16 Depth
Shipping Dimensions: 10 Height x 23.5 Width x 23 Depth
Shipping Weight: 18 lb
