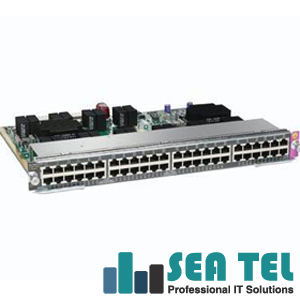

WS-X6148A-GE-TX

Manufacturer Part#: Cisco WS-X6148A-GE-TX
WS-X6148A-GE-TX Interface & Line Card

WS-X6148A-GE-TX - 48 x 10/100/1000Base-T - 1 x - Interface Module

Catalyst 6500 48-Port 10/100/1000 Classic Interface Module (WS-X6148A-GE-TX) with Power over Ethernet (PoE) option-Refreshed module that now supports jumbo frames and enhanced QoS capabilities (deeper and more per-port queues). Continues to support time-domain-reflectometer (TDR) for rapid cable fault detection.

Cisco WS-X6148A-GE-TX General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: Catalyst 6500 Series 48-Port 10/100/1000 RJ-45 Classic Interface Module
Product Type: Expansion Module

Cisco WS-X6148A-GE-TX Interfaces/Ports:
Interfaces/Ports: 48 x 10/100/1000Base-T LAN
Interfaces/Ports Details: 48 x RJ-45 10/100/1000Base-T LAN

Cisco WS-X6148A-GE-TX Media & Performance:
Connectivity Media: Category 5 UTP
Distance Support: 328.08 ft
Data Transfer Rate: 10Mbps Ethernet
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 1Gbps Gigabit Ethernet

Cisco WS-X6148A-GE-TX Memory:
Memory: 2.67MB per Port

Cisco WS-X6148A-GE-TX Additional Information:
Field-upgradable to Cisco Prestandard and IEEE 802.3af
Output Current (amps): 2.50
Output Power (watts): 105
AC Input Power (watts): 131.25
AC Heat Dissipation (BTU/hr): 448.22
DC Input Power (watts): 141.13
DC Heat Dissipation (BTU/hr): 481.96
Primary Application: Wiring closet
Maximum Frame Size (jumbo frame) Support: Up to 9216 bytes per frame
Queues per Port (Tx = Transmit, Rx = Receive):

Tx- 1 priority queue , 3 round-robin queues , 8 threshold
Rx- 1 round-robin queue , 2 threshold

WS-X6148A-GE-TX Field-upgradable to Cisco Prestandard and IEEE 802.3af
Output Current (amps): 2.50
Output Power (watts): 105
AC Input Power (watts): 131.25
AC Heat Dissipation (BTU/hr): 448.22
DC Input Power (watts): 141.13
DC Heat Dissipation (BTU/hr): 481.96
Primary Application: Wiring closet
Maximum Frame Size (jumbo frame) Support: Up to 9216 bytes per frame

WS-X6148A-GE-TX Queues per Port (Tx = Transmit, Rx = Receive):
Tx- 1 priority queue , 3 round-robin queues , 8 threshold
Rx- 1 round-robin queue , 2 threshold

WS-X6148A-GE-TX Compatibility:
Cisco Supervisor Engine 1A
Cisco Supervisor Engine 2
Cisco Supervisor Engine 32
Cisco Supervisor Engine 720
Catalyst 6500 Series Switches
Cisco Supervisor Engine 1A
Cisco Supervisor Engine 2
Cisco Supervisor Engine 32
Cisco Supervisor Engine 720
Catalyst 6500 Series Switches

WS-X6148A-GE-TX Certifications & Standards:
Cisco Prestandard and IEEE 802.3af
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
Cisco Prestandard and IEEE 802.3af
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab

Cisco WS-X6148A-GE-TX Original Manufacturer Warranty:
Standard Warranty: 90 Day Limited
