WS-X4748-RJ45V+E

Manufacturer's Part#: Cisco WS-X4748-RJ45V+E

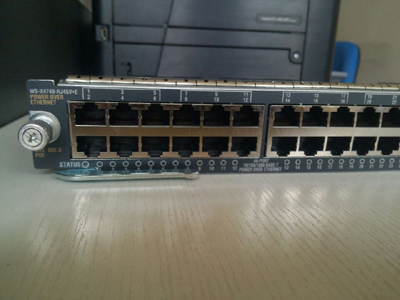

WS-X4748-RJ45V+E Cisco WS-X4748-RJ45V+E Line Card

In stock and ready to ship

WS-X4748-RJ45V+E CAT4500E 48 Port PoE 802.3AT-10/100/1000 RJ45

WS-X4748-RJ45V+E Product Specifications
Product Name CAT4500E 48 Port PoE 802.3AT-10/100/1000 RJ45
Product Type Service Module
Compatibility Catalyst 4500 Series Switch
Product Model WS-X4748-RJ45V+E
Data Transfer Rate 10 Mbps Ethernet
100 Mbps Fast Ethernet
1 Gbps Gigabit Ethernet
Application/Usage Data Networking
Switching Network

WS-X4748-RJ45V+E Interfaces/Ports:
48 x 10/100/1000Base-T LAN
Interfaces/Ports Details 48 x RJ-45 10/100/1000Base-T Network LAN
Connectivity Media Twisted Pair 10/100/1000Base-T
Interface Type 10/100/1000Base-T
Number of Ports/Channels 48

WS-X4748-RJ45V+E Manufacturer Cisco
Manufacturer Part # WS-X4748-RJ45V+E=
Product Description Cisco Line Card E-Series - Switch - 48 x 10/100/1000 - plug-in module - PoE
Device Type Switch - 48 ports
Enclosure Type Plug-in module
Ports 48 x 10/100/1000
Power Over Ethernet (PoE) Yes
Jumbo Frame Support 9216
Features Flow control, power over Ethernet (PoE), Port Aggregation Protocol (PAgP) support, Jumbo Frames support, PoE+
Compliant Standards IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.3at
Approximate Dimensions (WxDxH) 14.3 in x 10.7 in x 1.2 in
Manufacturer Warranty Limited lifetime warranty

WS-X4748-RJ45V+E General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: WS-X4748-RJ45V+E
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Model: WS-X4748-RJ45V+E
Product Name: WS-X4748-RJ45V+E Line Card
Product Type: Service Module

WS-X4748-RJ45V+E Technical Information
Application/Usage: Data Networking
Application/Usage: Switching Network

WS-X4748-RJ45V+E Interfaces/Ports
Interfaces/Ports: 48 x 10/100/1000Base-T LAN
Interfaces/Ports Details: 48 x RJ-45 10/100/1000Base-T Network LAN

WS-X4748-RJ45V+E Compatibility:
Catalyst 4500 Series Switch

WS-X4748-RJ45V+E Features
48 ports nonblocking
10/100/1000 module (RJ-45)
Cisco IOS XE Release 3.1.0SG or later
IEEE 802.3af/at and Cisco prestandard PoE, IEEE 802.3x flow control
IEEE 802.1AE and Cisco TrustSec capability in hardware
L2-4 Jumbo Frame support (up to 9216 bytes)
Capable of up to 30 W of inline power per port on all ports simultaneously
Enterprise and commercial: designed to power next-generation IP phones, wireless base stations, video cameras, and other PoE devices
Campus and branch applications requiring enhanced performance for large file transfers and network backups

WS-X4748-RJ45V+E General Specifications
Manufacturer Cisco
Manufacturer Part # WS-X4748-RJ45-E
Cost Central Item # 11425137
Product Description Cisco Catalyst 4500E Series Line Card - Switch - 48 x 10/100/1000 - plug-in module - for Catalyst 4507R-E, 4507R-E Data Bundle, 4507R-E PoE Bundle, 4510R-E
Device Type Switch - 48 ports
Enclosure Type Plug-in module

WS-X4748-RJ45V+E Interfaces Gigabit Ethernet
Ports 48 x 10/100/1000
Jumbo Frame Support 9216
Features Jumbo Frames support
Compliant Standards IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.3at, IEEE 802.3az
Approximate Dimensions (WxDxH) 14.3 in x 10.7 in x 1.2 in
System Requirements Cisco IOS XE

WS-X4748-RJ45V+E Designed For:
Catalyst 4507R-E, 4507R-E Data Bundle, 4507R-E PoE Bundle, 4510R-E

WS-X4748-RJ45V+E Compatible With
Cisco Catalyst 4507R-E
Cisco Catalyst 4507R-E Data Bundle
Cisco Catalyst 4507R-E PoE Bundle
Cisco Catalyst 4510R-E

WS-X4748-RJ45V+E Extended Specifications
General
Device Type Switch - 48 ports
Enclosure Type Plug-in module
Interfaces Gigabit Ethernet
Ports 48 x 10/100/1000
Jumbo Frame Support 9216
Features Jumbo Frames support

WS-X4748-RJ45V+E Compliant Standards:
IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.3at, IEEE 802.3az

WS-X4748-RJ45V+E Expansion / Connectivity
Interfaces 48 x 1000Base-T - RJ-45
Miscellaneous
MTBF 402,386 hours

WS-X4748-RJ45V+E Compliant Standards:
 NEBS level 3, ETSI, CISPR 22 Class A, EN 60950, IEC950, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A, CSA 22.2 No. 60950, AS/NZS 3548, FCC Part 15 A
Software / System Requirements
OS Required Cisco IOS XE

WS-X4748-RJ45V+E Dimensions & Weight
Approximate Width 14.3 in
Approximate Depth 10.7 in
Approximate Height 1.2 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)

WS-X4748-RJ45V+E Compatibility Information
Designed For Cisco Catalyst 4507R-E, 4507R-E Data Bundle, 4507R-E PoE Bundle, 4510R-E
