Product ID : WS-X4648-RJ45V+E
Product Description

Manufacturer Part#: Cisco WS-X4648-RJ45V+E
WS-X4648-RJ45V+E Cisco Module

WS-X4648-RJ45V+E - 48 x 10/100/1000Base-T - Expansion Module

In Stock & Ready to Ship

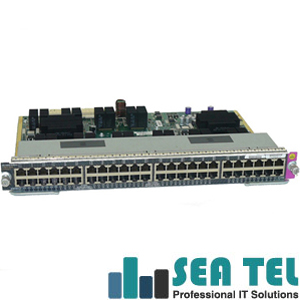

Catalyst 4500 E-Series "Premium" PoE line card (WS-X4648-RJ45V+E) has all of the PoE features of the "Classic" and E-Series PoE card with the addition of future software upgradeability to support up to 30 Watts per port. The Cisco Catalyst 4500 48-port 10/100/1000 E-Series line card is designed for LAN access applications where desktop users require gigabit connection speeds.

Cisco WS-X4648-RJ45V+E General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: 48-Port PCE Line Card
Product Type: Line Card

Cisco WS-X4648-RJ45V+E Interfaces/Ports
Interfaces/Ports: 48 x 10/100/1000Base-T LAN
Interfaces/Ports Details: 48 x RJ-45 10/100/1000Base-T PCE LAN

Cisco WS-X4648-RJ45V+E Media & Performance
Connectivity Media: Twisted Pair 10/100/1000Base-T
Data Transfer Rate: 10Mbps Ethernet
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 1Gbps Gigabit Ethernet

Cisco WS-X4648-RJ45V+E Physical Characteristics
Dimensions: 1.2 Height x 14.25 Width x 10.75 Depth

Cisco WS-X4648-RJ45V+E Additional Information:
Bandwidth is allocated across eight 6-port groups, providing 3 Gbps per port group
L2-4 Jumbo Frame support (up to 9216 bytes)
Future support for 30W of PCE per port
Bandwidth is allocated across eight 6-port groups, providing 3 Gbps per port group
L2-4 Jumbo Frame support (up to 9216 bytes)
Future support for 30W of PCE per port

WS-X4648-RJ45V+E Compatibility:
Cisco Catalyst 4500 Series Switches
Cisco Catalyst 4500 Series Switches
