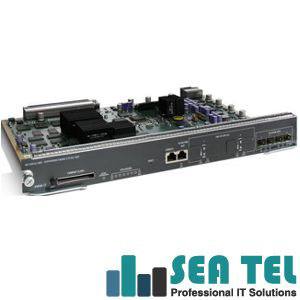

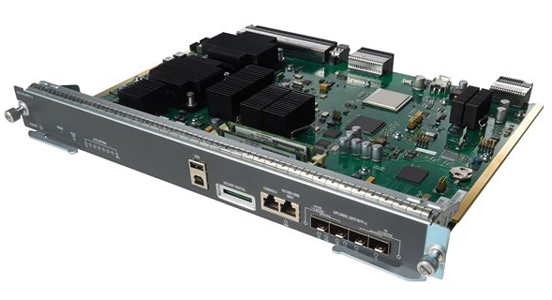

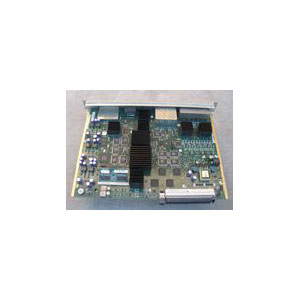

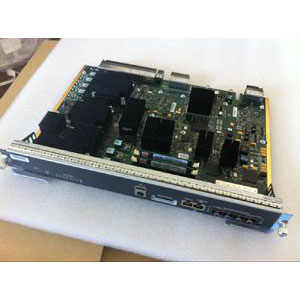

WS-X45-SUP7L-E
WS-X45-SUP7L-E WS-X45-SUP7L-E

WS-X45-SUP7L-E

Product ID : WS-X45-SUP7L-E
Product Description

Manufacturer Part # Cisco WS-X45-SUP7L-E
WS-X45-SUP7L-E
Device Type Control processor
WS-X45-SUP7L-E Product Description Cisco Supervisor Engine 7L-E - Control processor - plug-in module

Cisco Catalyst 4500 Series Supervisor Engine 6-E.dpf

WS-X45-SUP7L-E Description
The Cisco Catalyst 4500E Supervisor Engine 7L-E is an enterprise-class borderless campus access and price/performance aggregation supervisor engine designed to provide 520Gbps per system with E-Series chassis. The Cisco Catalyst 4500E Supervisor Engine 7L-E builds on the success of its predecessor, the Cisco Catalyst 4500E Supervisor Engine 6L-E, and provides unprecedented performance with borderless services such as Flexible NetFlow (FNF) and hosted third-party applications.

The Cisco Catalyst 4500E Supervisor Engine 7L-E builds on the widely deployed line of Cisco Catalyst 4500 supervisor engines and enhances its predecessors to provide nonblocking 48 Gbps per slot bandwidth with Flexible NetFlow for optimized application visibility.

WS-X45-SUP7L-E Product Highlights
•Up to 7 to 10 years of investment protection through backward and forward compatibility
•520 Gbps system performance with 48 Gbps per slot to every line-card slot
•Future-proof investment with dual 10 Gigabit Ethernet uplink or four Gigabit Ethernet uplinks
•Cisco Universal Power over Ethernet (UPOE) for unprecedented convergence to IP network infrastructure
•Application visibility through FNF
•Energy efficiency with support for 802.3az Energy-Efficient Ethernet (EEE)-capable line cards
•First and only modular switch with 8 bidirectional line-rate SPAN/RSPAN sessions

WS-X45-SUP7L-E General Specifications
Manufacturer Cisco
Manufacturer Part # WS-X45-SUP7L-E
Cost Central Item # 11442632
Product Description Cisco Supervisor Engine 7L-E - Control processor - plug-in module
Device Type Control processor
Form Factor Plug-in module
Processor 1 x 1.5 GHz
RAM 2 GB
Flash Memory 1 GB
Performance Switching capacity : 520 Gbps
Per-slot switching capacity : 48 Gbps
IPv6 routing : 110 Mbps
IPv4 routing : 225 Mbps
Capacity QoS hardware entries : 64000
Security services entries : 64000
Virtual interfaces (VLANs) : 4094
IPv4 routes : 64000
IPv6 routes : 32000
MAC addresses : 55000
Spanning Tree Protocol instances : 12000
Switched virtual interfaces (SVIs) : 4094
NetFlow entries : 128000
ARP entries : 47000
Manufacturer Warranty Limited lifetime warranty

WS-X45-SUP7L-E General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-X45-SUP7L-E
Manufacturer Website Address
http://www.cisco.com
Brand Name Cisco
Product Model 7L-E
Product Name 7L-E Supervisor Engine
Product Type Supervisor Engine

WS-X45-SUP7L-E Technical Information
Application/Usage Data Networking
Application/Usage Network Management

WS-X45-SUP7L-E Interfaces/Ports
Interfaces/Ports Details 1 x Type A USB USB 2.0
Interfaces/Ports Details 1 x RJ-45 10/100/1000Base-T Asynchronous Console RS-232 Management
Interfaces/Ports Details 1 x RJ-45 10/100/1000Base-T Network Management

WS-X45-SUP7L-E I/O Expansions
Expansion Slots 2 x SFP (mini-GBIC) Uplink
Expansion Slots 1 x Secure Digital (SD) Card
Expansion Slots 2 x SFP (mini-GBIC)/SFP+ Uplink

WS-X45-SUP7L-E Miscellaneous
Compatibility Cisco Catalyst 4500 E-series Switch

WS-X45-SUP7L-E Cisco Catalyst Switch Chassis:

4503-E
4506-E
4507R-E
4507R+E

WS-X45-SUP7L-E Cisco Catalyst 4500E Series Line Cards and Modules:

WS-X4748-UPOE+
Green Compliant Yes
Green Compliance Certificate/Authority RoHS-5

The Cisco Catalyst 4500E Supervisor Engine 7L-E is an enterprise-class borderless campus access and price/performance aggregation supervisor engine designed to provide 520 Gbps per system with E-Series chassis. The Cisco Catalyst 4500E Supervisor Engine 7L-E provides unprecedented performance with borderless services such as Flexible NetFlow (FNF) and hosted third-party applications.



WS-X45-SUP7L-E Extended Specifications
GeneralDevice Type Control processor
Processor / Memory / StorageProcessors Installed 1 x 1.5 GHz
RAM 2 GB SDRAM
Flash Memory 1 GB

WS-X45-SUP7L-E NetworkingForm Factor Plug-in module
Connectivity Technology Wired
Routing Protocol PIM-SSM
Remote Management Protocol RMON 1, RMON 2
Performance Switching capacity : 520 Gbps
Per-slot switching capacity : 48 Gbps
IPv6 routing : 110 Mbps
IPv4 routing : 225 Mbps
Capacity QoS hardware entries : 64000
Security services entries : 64000
Virtual interfaces (VLANs) : 4094
IPv4 routes : 64000
IPv6 routes : 32000
MAC addresses : 55000
Spanning Tree Protocol instances : 12000
Switched virtual interfaces (SVIs) : 4094
NetFlow entries : 128000
ARP entries : 47000
Features IPv6 support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), IPv4 support, Link Aggregation Control Protocol (LACP), NetFlow, universal power over Ethernet (UPOE)

WS-X45-SUP7L-E Compliant Standards
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az



WS-X45-SUP7L-E CommunicationsSupported Flash Memory Cards SD Memory Card
Expansion / ConnectivityExpansion Slots 2 (total) / 2 (free) x SFP+
2 (total) / 2 (free) x SFP (mini-GBIC)
Interfaces 1 x management - RJ-45
1 x 1000Base-T (management) - RJ-45
1 x USB - Type A
Compatible Slots 1 x expansion slot

WS-X45-SUP7L-E MiscellaneousMTBF 183,341 hours
Compliant Standards NEBS level 3, CISPR 22 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, CAN/CSA C22.2 No. 60950-1

Manufacturer WarrantyService & Support Limited lifetime warranty
Service & Support Details Limited warranty - advance parts replacement - lifetime - response time: 10 days

WS-X45-SUP7L-E Environmental Parameter
sMin Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)

WS-X45-SUP7L-E Product Details
Device Type Control processor
Form Factor Plug-in module
Processor 1 x 1.5 GHz
RAM 2 GB
Flash Memory 1 GB
Performance Switching capacity : 520 Gbps
Per-slot switching capacity : 48 Gbps
IPv6 routing : 110 Mbps
IPv4 routing : 225 Mbps
Capacity QoS hardware entries : 64000
Security services entries : 64000
Virtual interfaces (VLANs) : 4094
IPv4 routes : 64000
IPv6 routes : 32000
MAC addresses : 55000
Spanning Tree Protocol instances : 12000
Switched virtual interfaces (SVIs) : 4094
NetFlow entries : 128000
ARP entries : 47000

WS-X45-SUP7L-E Compatibility •Cisco Catalyst 4500 E-series Switch
Cisco Catalyst Switch Chassis:

•4503-E
•4506-E
•4507R-E
•4507R+E

WS-X45-SUP7L-E Cisco Catalyst 4500E Series Line Cards and Modules:

•WS-X4748-UPOE+E
•WS-X4748-RJ45-E
•WS-X4748-RJ45V+E
•WS-X4712-SFP+E
•WS-X4648-RJ45V-E
•WS-X4648-RJ45V+E
•WS-X4648-RJ45-E
•WS-X4606-X2-E
•WS-X4624-SFP-E
•WS-X4612-SFP-E

WS-X45-SUP7L-E Cisco Catalyst 4500 Classic Line Cards and Modules:

•WS-X4148-FE-BD-LC
•WS-X4124-FX-MT
•WS-X4148-FX-MT
•WS-X4124-RJ45
•WS-X4148-RJ
•WS-X4148-RJ21
•WS-X4248-RJ21V
•WS-X4224-RJ45V
•WS-X4248-RJ45V
•WS-X4248-FE-SFP
•WS-X4232-GB-RJ
•WS-X4302-GB
•WS-X4306-GB
•WS-X4506-GB-T
•WS-X4418-GB
•WS-X4448-GB-SFP
•WS-X4424-GB-RJ45
•WS-X4448-GB-RJ45
•WS-X4548-GB-RJ45
•WS-X4524-GB-RJ45V
•WS-X4548-GB-RJ45V
•WS-X4548-RJ45V+
