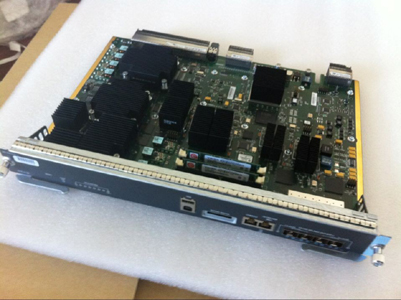

WS-X45-SUP7-E

Manufacturer's Part#: Cisco WS-X45-SUP7-E

WS-X45-SUP7-E
Cisco is announcing the Cisco® Catalyst® 4500E Series, an enterprise-class borderless network access and aggregation switch, with 848 Gbps of bandwidth per system. This enterprise-class switch is the first Cisco Catalyst switch at 48 Gbps per slot, providing flexible NetFlow and advanced security, combined with reduced total cost of ownership (TCO) and excellent investment protection to facilitate a borderless user experience for enterprise, public sector, midmarket, and commercial customers deploying business-critical applications.

WS-X45-SUP7-E Description
Establishing borderless leadership is now easier than ever to achieve with the Cisco Supervisor Engine 7-E, an enterprise-class borderless network access and aggregation supervisor engine. Cisco Supervisor Engine 7-E is built with price-performance aggregation deployments in mind, providing increased Gigabit Ethernet and 10 Gigabit Ethernet fiber density along with hardware capabilities to support enterprise-class aggregation functionalities. Supervisor Engine 7-E facilitates borderless user experiences for enterprise, public sector, mid-market, and commercial customer deployment business-critical applications.

WS-X45-SUP7-E Catalyst 4500 E-Series Supervisor, 848GbpsCisco WS-X45-SUP7-E Catalyst 4500 E-Series Supervisor, 848Gbps
•848 Gbps switching capacity with 250 Mpps of throughput
•4 10 Gigabit Ethernet uplinks (SFP+)
•SFP support on uplinks to offer flexibility for up to 4 Gigabit Ethernet
•128K flexible NetFlow entries

WS-X45-SUP7-E Spec:
Supported ModelCisco Catalyst 4500E Series Switch
Specifications848 Gbps switching capacity with 250 Mpps of throughput
4 10 Gigabit Ethernet uplinks (SFP+)
SFP support on uplinks to offer flexibility for up to 4 Gigabit Ethernet
128K flexible NetFlow entries in hardware
External USB and SD card support for flexible storage options
Flexibility to operate at 6, 24 or 48 Gbps per line card slot with no performance degradation
IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
Dynamic hardware forwarding-table allocations for ease of IPv4-to-IPv6 migration

WS-X45-SUP7-E Manufacturer  Cisco
Manufacturer Part #  WS-X45-SUP7-E

WS-X45-SUP7-E Product Description  :
Cisco Supervisor Engine 7-E - Control processor - plug-in module
Device Type  Control processor
Enclosure Type  Plug-in module
Processor  1.5 GHz
RAM Installed ( Max )  2 GB ( 4 GB )
Performance  Switching capacity : 848 Gbps
Per-slot switching capacity : 48 Gbps
IPv6 routing : 125 Mbps
IPv4 routing : 250 Mbps
Capacity  QoS hardware entries : 128000
Security services entries : 128000
Virtual interfaces (VLANs) : 4096
Multicast entries (IPv4) : 70000
Multicast entries (IPv6) : 64000
Multicast entries (shared between IPv4 and IPv6) : 16000
MAC addresses : 55000
IPv6 routes : 128000
IPv4 routes : 256000
Spanning Tree Protocol instances : 3000
Switched virtual interfaces (SVIs) : 4096
NetFlow entries : 128000
Features  Uplink, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping

WS-X45-SUP7-E Product Features
•Predictable performance and scalability
The Supervisor Engine 7-E is also optimized for multimedia applications with its advanced multicast support offered by features such as Protocol Independent Multicast (PIM), Source-Specific Multicast (SSM), and Pragmatic General Multicast (PGM), giving your network additional scalability to support multimedia applications.
•Simplified operations through automation
As campus switching has grown to support increasing enterprise demands, so has the need to deploy and manage evolving technologies. Simplified operations are critical in meeting these challenges and achieving increased operational efficiency through proactive management and reduction in unplanned network downtime.
•Optimized application visibility with flexible NetFlow
Cisco IOS flexible NetFlow allows optimization of the network infrastructure, reducing operation costs, improving capacity planning and security incident detection with increased flexibility and scalability. The Cisco Supervisor Engine 7-E enables powerful, on-box and customizable event correlation and policy actions. This allows the switches to trigger customized event alarms or policy actions when the predefined condition is met. With no external appliance required, customers are able to use existing infrastructure to perform traffic monitoring, making traffic analysis economical even on large IP network.
•IPv6 support
IPv6 is important for the future of IP networking and is critical for the expansion of IP address space in the future. IPv6 capability is required by many companies and is being mandated by governments worldwide. The Supervisor Engine 7-E supports Multicast Listener Discovery (MLD) snooping for IPv6, enhancing performance and reducing network traffic by allowing a switch to dynamically add and remove hosts from a multicast group.

WS-X45-SUP7-E Product Details
Device Type Control processor
Form Factor Plug-in module
Processor 1.5 GHz
RAM 2 GB (installed) / 4 GB (max)
Performance Switching capacity : 848 Gbps
Per-slot switching capacity : 48 Gbps
IPv6 routing : 125 Mbps
IPv4 routing : 250 Mbps
Capacity QoS hardware entries : 128000
Security services entries : 128000
Virtual interfaces (VLANs) : 4096
Multicast entries (IPv4) : 70000
Multicast entries (IPv6) : 64000
Multicast entries (shared between IPv4 and IPv6) : 16000
MAC addresses : 55000
IPv6 routes : 128000
IPv4 routes : 256000
Spanning Tree Protocol instances : 3000
Switched virtual interfaces (SVIs) : 4096
NetFlow entries : 128000
Manufacturer Warranty Limited lifetime warranty

WS-X45-SUP7-E Product Details
Device Type Control processor
Enclosure Type Plug-in module
Processor 1.5 GHz

WS-X45-SUP7-E RAM Installed:
( Max ) 2 GB ( 4 GB )

WS-X45-SUP7-E Performance Switching capacity :
848 Gbps ¦ Per-slot switching capacity : 48 Gbps ¦ IPv6 routing : 125 Mbps ¦ IPv4 routing : 250 Mbps
Capacity QoS hardware entries : 128000 ¦ Security services entries : 128000 ¦ Virtual interfaces (VLANs) : 4096 ¦ Multicast entries (IPv4) : 70000 ¦ Multicast entries (IPv6) : 64000 ¦ Multicast entries (shared between IPv4 and IPv6) : 16000 ¦ MAC addresses : 55000 ¦ IPv6 routes : 128000 ¦ IPv4 routes : 256000 ¦ Spanning Tree Protocol instances : 3000 ¦ Switched virtual interfaces (SVIs) : 4096 ¦ NetFlow entries : 128000

WS-X45-SUP7-E Manufacturer Warranty Limited lifetime warranty
