WS-X4148-FX-MT

Manufacturer Part#: Cisco WS-X4148-FX-MT

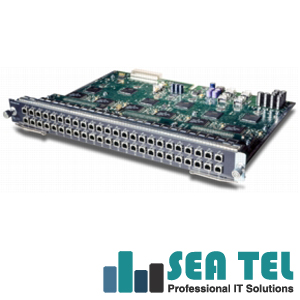

WS-X4148-FX-MT Interface & Line Card

WS-X4148-FX-MT - Catalyst 4000 FE Switching Module, 48-100FX MMF(MTRJ)

Cisco Catalyst 4000 Series 48-Port 100BASE-FX Line Card can provide up to 240 ports of IEEE 802.3 100BASE-FX per Cisco Catalyst 4000 system, allowing service providers to run point-to-point Fast Ethernet fiber links over multimode fiber within the access/distribution layer of the network.

Cisco WS-X4148-FX-MT Certifications & Standards: Compliance:
•CE Marking

WS-X4148-FX-MT Safety:
•UL 1950
•CSA-C22.2 No. 950
•EN60950
•IEC 60950
•TS001
•AS/NZS 3260

WS-X4148-FX-MT EMC:
•FCC Part 15, Class A (CFR10 47) (USA)
•ICES-003 Class A (Canada)
•EN55022 Class A (Europe), CISPR22 Class A (International)
•AS/NZS 3548 Class A (Australia)
•VCCI Class A (Japan) with UTP


Cisco WS-X4148-FX-MT Original Manufacturer Warranty:
Standard Warranty: 90 Day Limited

Cisco WS-X4148-FX-MT General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 4000
Product Name: Catalyst 4000 Series 48-Port 100BASE-FX Line Card
Product Type: Switching Module

Cisco WS-X4148-FX-MT Interfaces/Ports:
Interfaces/Ports: 48 x 100Base-FX LAN
Interfaces/Ports Details: 48 x MT-RJ 100Base-FX LAN

Cisco WS-X4148-FX-MT Media & Performance:
Connectivity Media: Multi-mode Fiber 100Base-FX
Distance Support: 1312Multi-mode Fiber Half-duplex
Distance Support: 1.2Multi-mode Fiber Full-duplex
Data Transfer Rate: 100Mbps Fast Ethernet Half/Full-duplex

Cisco WS-X4148-FX-MT Controls/Indicators:
Status Indicators:
Status
Link
Status
Link

Cisco WS-X4148-FX-MT Power Description:
Power Consumption: 10 W Reset Mode
Power Consumption: 120 W Operating

Cisco WS-X4148-FX-MT Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -40 degrees F (-40.0 degrees C) to 167 degrees F (75.0 degrees C) Non-operating
Humidity: 10% to 90% Non-condensing

Cisco WS-X4148-FX-MT Physical Characteristics:
Dimensions: 1.75 Height x 14.4 Width x 10.5 Depth
Shipping Dimensions: 14.4 Height x 22.9 Width x 23 Depth
Weight: 4.8 lb
Shipping Weight: 8.15 lb

Cisco WS-X4148-FX-MT Additional Information:
Up to 240 ports of 100BASE-FX in each Cisco Catalyst 4000 chassis
Long-distance runs of Fast Ethernet (up to 2 km) over multimode fiber
Cost-effective 100BASE-FX connectivity

WS-X4148-FX-MT  Port Densities:
Catalyst 4503: 96
Catalyst 4506: 240
Catalyst 4507R: 240
Up to 240 ports of 100BASE-FX in each Cisco Catalyst 4000 chassis
Long-distance runs of Fast Ethernet (up to 2 km) over multimode fiber
Cost-effective 100BASE-FX connectivity

WS-X4148-FX-MT Port Densities:
Catalyst 4503: 96
Catalyst 4506: 240
Catalyst 4507R: 240

WS-X4148-FX-MT Compatibility:
Catalyst 4503 switch
Catalyst 4506 switch
Catalyst 4507R switch
Catalyst 4503 switch
Catalyst 4506 switch
Catalyst 4507R switch
