WS-F6700-DFC3B
WS-F6700-DFC3B

WS-F6700-DFC3B

Product ID : Cisco Interface & Line Card
Product Description
Manufacturer Part#: Cisco WS-F6700-DFC3B
WS-F6700-DFC3B Cisco Interface & Line Card

WS-F6700-DFC3B - Distributed Forwarding Card Catalyst 6500 Dist Fwd Card, 256K+ Routes for WS-X67xx

In stock  and Ready to ship

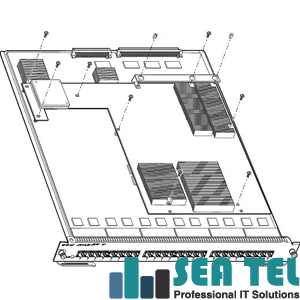

Cisco Catalyst 6500 Series Distributed Forwarding Card 3 (DFC3) is an optional daughter card for CEF720-based line cards such as WS-X6704-10GE, WS-X6724-SFP, WS-X6748-SFP, and WS-X6748-GE-TX. The DFC3 provides localized forwarding decisions for each line card and scales the aggregate system performance to reach up to 400 mpps. The new DFC3B offer enhancements to support Multiprotocol Label Switching (MPLS) and Access Control Entries (ACE) counters on the Cisco 6700 Series line cards.

Cisco WS-F6700-DFC3B General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: WS-F6700-DFC3B Distributed Forwarding Card
Product Type: Distributed Forwarding Card

Cisco WS-F6700-DFC3B Interfaces/Ports
Interfaces/Ports: Not Applicable
Interfaces/Ports Details: Not Applicable

Cisco WS-F6700-DFC3B Memory
Memory: 256MB DRAM Installed
Memory: 512MB DRAM Upgradeable
Memory: 1GB DRAM Upgradeable

WS-F6700-DFC3B Additional Information:
Support of MPLS and ACE counters
IPv4 routes: 256KB entries
NetFlow entries: 128 KB
ACL labels: 4096 KB

WS-F6700-DFC3B DFC3 Supported Combinations:
WS-SUP720, PFC3A functionality
WS-SUP720-3B, PFC3B functionality
WS-SUP720-3BXL, PFC3B functionality
Support of MPLS and ACE counters
IPv4 routes: 256KB entries
NetFlow entries: 128 KB
ACL labels: 4096 KB

WS-F6700-DFC3B DFC3 Supported Combinations:
WS-SUP720, PFC3A functionality
WS-SUP720-3B, PFC3B functionality
WS-SUP720-3BXL, PFC3B functionality
System Requirements:
Cisco IOS Software Release: 12.2(18)SXD and later

WS-F6700-DFC3B Compatibility:
Catalyst 6500 series switch (Catalyst 6506, 6509, 6509-NEB, or 6513) or Cisco 7600 series router (Cisco 7606, 7609, or 7613)
Supervisor Engine 720 with MSFC3 running Cisco IOS software on the Supervisor Engine 720 and MSFC3
Deployed in CEF720 line cards such as WS-X6704-10GE, WS-X6724-SFP, WS-X6748-SFP, and WS-X6748-GE-TX
Not supported on Cisco 6500 or 6800 series line cards
Catalyst 6500 series switch (Catalyst 6506, 6509, 6509-NEB, or 6513) or Cisco 7600 series router (Cisco 7606, 7609, or 7613)
Supervisor Engine 720 with MSFC3 running Cisco IOS software on the Supervisor Engine 720 and MSFC3
Deployed in CEF720 line cards such as WS-X6704-10GE, WS-X6724-SFP, WS-X6748-SFP, and WS-X6748-GE-TX
Not supported on Cisco 6500 or 6800 series line cards
