WS-C6513

Manufacturer Part#: WS-C6513

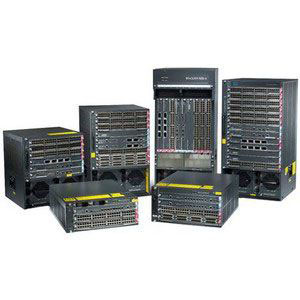

WS-C6513 Catalyst 6500 Series Switches
WS-C6513 Cisco Catalyst 6513 - Switch

The 13-slot Cisco Catalyst 6513 Switch chassis is ideally suited for high-performance, high port density Fast Ethernet and Gigabit Ethernet aggregation in all parts of the network, including the access, distribution, and backbone layers as well as the server farm and data center environments. With up to 12 payload slots available, the 13-slot chassis offers industry-leading 10/100/1000 Gigabit Ethernet and 10 Gigabit Ethernet port densities while providing high levels of network resilience

Cisco WS-C6513 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Catalyst
Product Series: 6500
Product Name: Catalyst 6513 Ethernet Switch
Product Type: Ethernet Switch

Cisco WS-C6513 Interfaces/Ports:
Interfaces/Ports: LAN

Cisco WS-C6513 I/O Expansions:
Number of Expansion Slots: 13
Expansion Slots: (13 Total) Expansion Slot
Modules: Not Included

Cisco WS-C6513 Management & Protocols:
Manageable: Yes
Management:
NewFlow data export
TopN ports report
RMON agent
HC RMON (High Capacity, 64-bit counters)
Switched Port Analyzer (SPAN) and Enhanced-SPAN
Multiple Concurrent SPAN
Remote SPAN
Filtered SPAN
Syslog support
Telnet/command line interface support
IP TraceRoute
Domain Name Server (DNS) services
Network Time Protocol (NTP)
Cisco Discovery Protocol (CDP) v2
VLAN Trunking Protocol (VTP)
IEEE Generic Attribute Registration Protocol (GARP)
IEEE GARP VLAN Registration Protocol (GVRP)
VLAN Query Protocol (VQP)
Simple Network Management Protocol (SNMP) v1, v2c, v3
SNMP MIB-II support
SNMP MIB Additions and Enhancements
Cisco-Switch-Engine-MIB
Cisco-Memory-Pool-MIB
Entity-MIB
TraceRoute MIB
SNMP Traps
Multiple module software download
Multiple Default IP Gateway
NewFlow data export
TopN ports report
RMON agent
HC RMON (High Capacity, 64-bit counters)
Switched Port Analyzer (SPAN) and Enhanced-SPAN
Multiple Concurrent SPAN
Remote SPAN
Filtered SPAN
Syslog support
Telnet/command line interface support
IP TraceRoute
Domain Name Server (DNS) services
Network Time Protocol (NTP)
Cisco Discovery Protocol (CDP) v2
VLAN Trunking Protocol (VTP)
IEEE Generic Attribute Registration Protocol (GARP)
IEEE GARP VLAN Registration Protocol (GVRP)
VLAN Query Protocol (VQP)
Simple Network Management Protocol (SNMP) v1, v2c, v3
SNMP MIB-II support
SNMP MIB Additions and Enhancements
Cisco-Switch-Engine-MIB
Cisco-Memory-Pool-MIB
Entity-MIB
TraceRoute MIB
SNMP Traps
Multiple module software download

Multiple Default IP Gateway:
Protocols: IS-IS
Protocols: Vines
Protocols: CLNS
Protocols: GARP
Protocols: DECnet
Protocols: Frame Relay
Protocols: TCP/IP
Protocols: HDLC
Protocols: ATM
Protocols: PoS
Protocols: BGP v4
Protocols: EIGRP
Protocols: IGRP
Protocols: OSPF
Protocols: RIP v1.0
Protocols: RIP v2.0
Protocols: IPX/SPX
Protocols: AppleTalk

Cisco WS-C6513 Storage:
Storage: Not Applicable

Cisco WS-C6513 Reliability:
MTBF: 7Year

Cisco WS-C6513 Power Description:
Power Source: Power Supply
Redundant Power Supply: Yes

Cisco WS-C6513 Environmental Conditions:
Temperature: -40 degrees F (-40.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Relative Humidity Storage
Humidity: 10% to 90% Non-condensing Relative Humidity Operating
Altitude: 0 ft to 6500 ft Operating

Cisco WS-C6513 Physical Characteristics:
Dimensions: 33.3 Height x 17.3 Width x 18.1 Depth
Shipping Dimensions: 39 Height x 23.5 Width x 33.75 Depth
Weight: 98lb
Shipping Weight: 152 lb

Cisco WS-C6513 Miscellaneous:
Additional Information: Item included:
•PKG,PWR SPLY INSERT,CAT 5500 ()
•Catalyst 6000 Blank Line Card Slot Cover (WS-X6K-SLOT-CVR)

Redundancy Features:
•Ability to house two hot-swappable supervisor engines
•Ability to house two fully redundant, AC-input or DC-input, load-sharing power supplies
•A hot-swappable fan assembly containing multiple fans
•Redundant backplane-mounted clock modules
•Redundant backplane-mounted voltage termination (VTT) modules

Certifications & Standards: Safety Certifications:
•UL 1950
•EN 60950
•CSA-C22.2 no. 950
•IEC 60950
•AS/NZA 3260
•21 CFR 1040
•EN 60825-1
•IEC 60825-1
•TS 001

Electromagnetic Emissions Certifications:
•FCC (CFR 47, Part 15) Class A
•VCCI
•CE Marking
•EN 55022
•EN 55024
•CISPR 22
•AS/NZS 3548
•NEBS Level 3 (GR-1089-CORE, GR-63-CORE)
•ETSI ETS-300386-2 - IEEE 802.1d Bridging
•IEEE 802.1p, q VLAN tagging
•IEEE 802.1s Per-VLAN Group Spanning Tree Protocol
•IEEE 802.1w Rapid Spanning Tree Protocol
•IEEE 802.1x
•IEEE 802.3 10BASE-T, 10BASE-FL
•IEEE 802.3ad Link aggregation
•IEEE 802.3ab 1000BASE-T
•IEEE 802.3ae 10 Gigabit Ethernet
•IEEE 802.3u 100BASE-TX, 100BASE-FX
•IEEE 802.3x Flow control
•IEEE 802.3z 1000BASE-SX, 1000BASE-LX
