Manufacturer Part#: WS-C6506
WS-C6506  Catalyst 6500 Series Switches

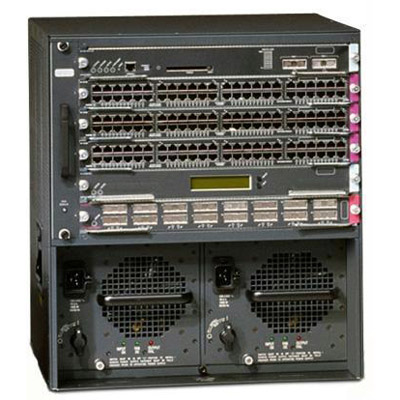

WS-C6506 CATALYST 6506 CHASSIS

Ideal for many wiring-closet and core-network deployments, the 6-slot Cisco Catalyst 6506 provides intermediate port densities and supports a range of power supply options, including redundant power supplies ranging from 1000W AC or DC to 2500W AC or DC. When equipped with a single Catalyst 6500 Series supervisor engine, five payload slots are available to support a wide range of interface or services modules. Redundant supervisor engine configurations using fast 1-3 second failover are also supported for maximum network uptime. The Catalyst 6506 also features field upgradable fan trays for easy service

Cisco WS-C6506 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Catalyst
Product Series: 6500
Product Name: Catalyst 6506 Ethernet Switch
Product Type: Ethernet Switch

Cisco WS-C6506 Interfaces/Ports:
Interfaces/Ports: LAN

Cisco WS-C6506 I/O Expansions:
Number of Expansion Slots: 6
Expansion Slots: (6 Total) Expansion Slot
Modules: Not Included

Cisco WS-C6506 Software:
Operating System:
Supports both CatOS and IOS software
Supports both CatOS and IOS software


Cisco WS-C6506 Storage:
Storage: Not Applicable

Cisco WS-C6506 Reliability:
MTBF: 7Year

Cisco WS-C6506 Power Description:
Power Source: Power Supply
Redundant Power Supply: Yes

Cisco WS-C6506 Environmental Conditions:
Temperature: -40 degrees F (-40.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Relative Humidity Storage
Humidity: 10% to 90% Non-condensing Relative Humidity Operating
Altitude: 0 ft to 6500 ft Operating

Cisco WS-C6506 Physical Characteristics:
Dimensions: 20.1 Height x 17.25 Width x 18.4 Depth
Shipping Dimensions: 22.75 Height x 24 Width x 31.75 Depth
Weight: 45lb
Shipping Weight: 93 lb

Cisco WS-C6506 Miscellaneous:
Additional Information: Item Included:
•Catalyst 6000 Blank Line Card Slot Cover (WS-X6K-SLOT-CVR)
•PKG,PWR SPLY INSERT,CAT 5500 (5500-PS-INSERT)

Supports all Catalyst 6500 modules, including all:
•Supervisor engines:
- Supervisor 1, 2, 720
•Switch fabric modules
•Fast Ethernet modules
•Gigabit Ethernet modules
•10 Gigabit Ethernet modules
•Voice modules
•Flex Wan Modules
•ATM modules
•Multi Gigabit services modules (content services ,firewall, intrusion detection, IPSec/VPN, network analysis, and SSL acceleration)

•Noise levels: 45.8 to 49.6 dBa
•Airflow: 200 lfm through system fan assembly
•Weight (Chassis fully configured with 1 supervisor engine, 5 switching modules, and 2 power supplies): 115 lb (52.15 kg)
•Chassis depth including cable guide is 21.64 in. (55.0 cm)
•Provides maximum uptime with redundancy and rapid 2-3 second failover across supervisor engine

Power Supply Options:
•1000W AC
•1300W AC
•1300W DC
•2500W AC
•2500W DC

Certifications & Standards: Safety:
•UL 1950
•EN 60950
•CSA-C22.2 no. 950
•IEC 60950
•AS/NZA 3260
•21 CFR 1040
•EN 60825-1
•IEC 60825-1
•TS 001

EMC:
•FCC (CFR 47, Part 15) Class A
•VCCI
•CE Marking
•EN 55022
•EN 55024
•CISPR 22
•AS/NZS 3548
•NEBS Level 3 (GR-1089-CORE, GR-63-CORE)
•ETSI ETS-300386-2 IEEE Compliance:
•802.1d Bridging
•802.1p, q VLAN tagging
•802.1s Per-VLAN Group Spanning Tree Protocol
•802.1w Rapid Spanning Tree Protocol
•802.1x
•802.3 10BASE-T, 10BASE-FL
•802.3ad Link aggregation
•802.3ab 1000BASE-T
•802.3ae 10 Gigabit Ethernet
•802.3u 100BASE-TX, 100BASE-FX
•802.3x Flow control
•802.3z 1000BASE-SX, 1000BASE-LX

RFC Compliance:
•ATM:
- 1483, 2584

•BGP4:
- 1269 , 1745 , 1771 , 1965 , 1966 , 1997, 2385, 2439, 2796, 2842

•General routing protocols:
- 768, 783, 791, 792, 793, 826, 854, 894, 903, 906, 951, 1542, 1027, 1122, 1256, 1519, 1541, 1591, 1619, 1662, 1812, 2131, 2338

•IP multicast:
- 1112, 1122, 2236, 2283, 2362

•Intermediate system to Intermediate system (IS-IS):
- 1195, 1377, 2763, 2966

•LSP tunnels:
- 2211, 2702

•MPLS:
- 2547, 2961, 3031, 3032, 3036,

•OSPF:
- 1583, 1587, 1745, 1765, 1850, 1997, 2154, 2178, 2328, 2370, 2385, 2439, 2842, 2918

•RIP:
- 1058, 1723, 2453

•Miscellaneous protocols:
- 1866, 2030, 2068

•Denial of service (DoS) protection:
- 2267

•Network management:
- 782, 783, 854, 951, 1155, 1156, 1157, 1212, 1213, 1215, 1256, 1285, 1354, 1493, 1516, 1573, 1643, 1650, 1657, 1724, 1757, 1850, 1901, 1907, 1908, 2021, 2037, 2096, 2233, 2613, 2668, 2787, 2925, 1492, 2138, 2668, 2787, 2925

•Security:
- 1492, 2138
