WS-C3560E-12SD-S
WS-C3560E-12SD-S

WS-C3560E-12SD-S

Product ID : Catalyst 3560E Series
Product Description

Manufacturer Part#: Cisco WS-C3560E-12SD-S
WS-C3560E-12SD-S
Catalyst 3560E Series

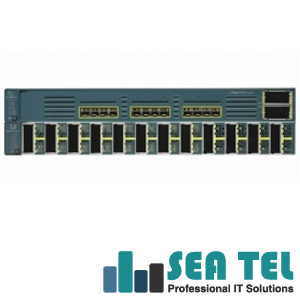

WS-C3560E-12SD-S - Catalyst 3560E-12SD-S Ethernet Switch

Cisco Catalyst 3560-E Series is an enterprise-class line of standalone access and aggregation switches that facilitate the deployment of secure converged applications while maximizing investment protection for evolving network and application requirements. Combining 10/100/1000 and Power over Ethernet (PoE) configurations with 10 Gigabit Ethernet uplinks, the Cisco Catalyst 3560-E Series access switches enhance worker productivity by enabling applications such as IP telephony, wireless, and video. Cisco Catalyst 3560-E Series aggregation switches deliver secure non-stop unified network services and versatile connectivity in a one rack-unit (1-RU) form factor for space and power constrained environments, enabling businesses to reduce total cost of ownership while maximizing investment protection.


Sea Tel International Co., Limited Cisco 3560 Series Catalyst Switch
WS-C3560E-12SD-S WS-C3560-24TS-E WS-C3560-48TS-S WS-C3560G-48TS-S
GLC-T GLC-SX-MM WS-C3560X-48PF-L WS-C3560X-24T-L
WS-C3560G-48TS-E WS-C3560G-48PS-E WS-C3560-8PC-S WS-C3560-48PS-S
WS-C3560-48TS-E WS-C3560G-24PS-E WS-C3560V2-24TS-S WS-C3560G-48PS-S
GLC-LH-SM WS-C3560-24PS-E WS-C3560E-24TD-S WS-C3560G-24PS-S
WS-C3560-48TS-S WS-C3560-48PS-E WS-C3560V2-48TS-S WS-C3560G-24TS-S
WS-C3560-24TS-S WS-C3560-24PS-S WS-C3560E-12SD-S WS-C3560-24PS-S

Contact Sea Tel International Co., Limited for more information.

WS-C3560E-12SD-S General Information:
Manufacturer  Cisco Systems, Inc
Manufacturer Part Number  WS-C3560E-12SD-S
Memory  128MB DRAM
Memory  64MB Flash Memory
Operating System  Cisco IOS

WS-C3560E-12SD-S performance:
Performance  68Gbps Backplane Speed
Performance  128Gbps Switching Fabric
Performance  47.6Mpps Forwarding Rate

WS-C3560E-12SD-S Power:
Power Over Ethernet  No
Power Supply  RPS Connector

WS-C3560E-12SD-S Technical information:
Expansion Slots  (12 Total) SFP (mini-GBIC)
Expansion Slots  (2 Total) X2
Form Factor  1U Rack-mountable
Green Compliance  Yes
Green Compliance Certificate/Authority  RoHS
Input Voltage  85 V AC to 265 V AC Power Supply
Interfaces/Ports  Not Applicable
Interfaces/Ports Details  1 x 8-pin RJ-45 Female Console Management
Interfaces/Ports Details  1 x 9-pin DB-9 Female Console RS-232 Management
Layer Support  2 to 3
Manageable  Yes

WS-C3560E-12SD-S Management:
•DHCP
•QoS
•VLAN
•SNMP v1,2c,3
•RMON
•CLI
•Telnet

WS-C3560E-12SD-S Protocols:
Enclosure Type Rack-mountable - 1U
Ports 12 x Gigabit SFP + 2 x X2
Routing Protocol OSPF, BGP-4, RIP-1, RIP-2, EIGRP, HSRP, DVMRP, PIM-SM, static IP routing, PIM-DM, OSPFv3
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

WS-C3560E-12SD-S Physical information:
Dimensions  1.75" Height x 17.5" Width x 19.5" Depth
Weight 7.3 kg

WS-C3560E-12SD-S Manufacturer Warranty:
90 days warranty
