VS-C6504E-S720-10G

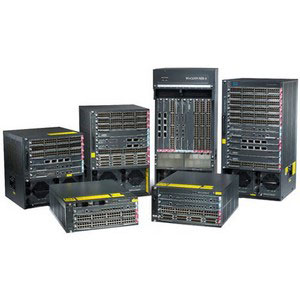

The Cisco Catalyst WS-C6504-E Chassis is a 320-Gbps, small form factor, high-performance chassis. With the Cisco Catalyst 6500 Series Supervisor Engine 720, it can deliver up to 80 Gbps of switching capacity per slot. The 6504-E Catalyst switch offers the broadest range of interface modules with industry-leading performance and advanced feature integration.With this flexibility the Cisco Catalyst 6504-E is suitable for deployments ranging from small and medium-sized core networks to distribution and access networks and to the WAN edge. With high availability and resiliency the platform is well suited for metro provider-edge applications.

Cisco VS-C6504E-S720-10G General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Catalyst
Product Series: 6500
Product Model: 6504-E
Product Name: Catalyst 6504-E Switch Chassis
Product Type: Switch Chassis

Cisco VS-C6504E-S720-10G Interfaces/Ports:
Interfaces/Ports: LAN

Cisco VS-C6504E-S720-10G Media & Performance:
Performance: Up to 80Gbps Switching Capacity
Performance: 320Gbps Forwarding/Filtering Rate

Cisco VS-C6504E-S720-10G I/O Expansions:
Number of Expansion Slots: 4
Expansion Slots: (4 Total) Expansion Slot
Modules: 1 x Sup720-10G-VSS Supervisor Engine

Cisco VS-C6504E-S720-10G Network & Communication:
Layer Support: 2 to 3

Cisco VS-C6504E-S720-10G Management & Protocols:
Management:
RMON

Cisco VS-C6504E-S720-10G Software:
Operating System
•Cisco IOS Software Release 12.2.18SXE
•Cisco Catalyst OS 8.4.2

Cisco VS-C6504E-S720-10G Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 48V DC to 60V DC
Redundant Power Supply: Yes

Cisco VS-C6504E-S720-10G Physical Characteristics:
Form Factor: Rack-mountable
Dimensions: 8.75 Height x 17.5 Width x 21.75 Depth
Weight: 40lb
