SPA-8XCHT1/E1

Manufacturer Part#: Cisco SPA-8XCHT1/E1

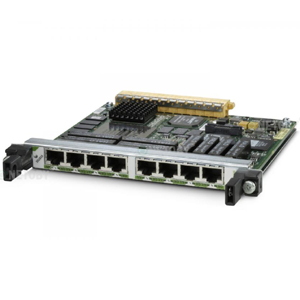

SPA-8XCHT1/E1  CISCO ROUTER MODULE

In stock and ready to ship

Cisco 8-Port Channelized T1/E1 SPA provides one of the greatest densities currently offered in the industry at 8 ports per SPA and up to 32 ports per SIP. At a cost per T1/E1 port less than that of a standard serial port with external channel service unit/data service unit (CSU/DSU), the Cisco 8-Port Channelized T1/E1 SPA is cost-effective for all WAN connectivity.
The SPA is designed to provide a full 8-port channelized solution for the Cisco 6500,7600 and the 12000 Series Routers. The interfaces can be channelized, fractional, or unframed (E1) with up to 256 independent High-Level Data Link Control (HDLC) channels definable for T1 and E1 applications. With these capabilities, the SPA eliminates the need for separate interface types for separate connection requirements.
Multilink Point-to-Point Protocol (MLPPP) is supported (in hardware) to enable link aggregation greater than T1 capacity. Up to eight individual T1s can be combined within a multilink bundle that appears to be a single IP link. This enables service providers to provision greater-than-T1 bandwidth incrementally, without requiring migration of the circuit and customer premises equipment (CPE) infrastructure to T3 facilities.
The Cisco 8-Port Channelized T1/E1 SPA is hot-swappable and supports service-transparent online insertion and removal (OIR), allowing removal of the SPA without impacting the interface processor and other SPAs.

The Cisco 8-Port Channelized T1/E1 SPA is ideal for service providers and large enterprises looking to cost-effectively deploy high-density terminations of multiple remote sites (Figure 2). The SPA helps enable applications that require remote and branch-office locations to be terminated on a single router in a corporate enterprise network. For service provider applications where only DSU functions are required (for example, at sites colocated with a carrier), the Cisco 8-Port Channelized T1/E1 SPA provides high port density at a reduced cost per port. For E1 applications, the channelized E1/G.703 interface allows direct connectivity to 120-ohm G.703 lines.

Cisco SPA-8XCHT1/E1 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: 8-Port Channelized T1/E1 Shared Port Adapter
Product Type: Shared Port Adapter

Cisco SPA-8XCHT1/E1 Interfaces/Ports
Interfaces/Ports: 8 x T1/E1
Interfaces/Ports Details: 8 x RJ-45 T1/E1

Cisco SPA-8XCHT1/E1 Media & Performance
Connectivity Media: 120-ohm STP
Connectivity Media: 100 ohm STP
Data Transfer Rate: 1.536Mbps T1 per Port
Data Transfer Rate: 2.048Mbps or 1.984Mbps E1 per Port

Cisco SPA-8XCHT1/E1 Management & Protocols
Management: SNMP

Cisco SPA-8XCHT1/E1 Physical Characteristics
Form Factor: Hot-swappable
Dimensions: 0.8 Height x 6.75 Width x 7.28 Depth
Weight: 0.75 lb

Cisco SPA-8XCHT1/E1 Miscellaneous
Additional Information:
Spare Product
Power 9.4W maximum
Physical Interface: RJ-45 to BNC adapter cable option
Up to 8 independent T1 or E1 ports configurable as either all T1 or all E1 only
Channelized and fractional T1/E1, clear channel E1 supported
Internal or network clocking selectable on each port
Loopback capabilities
Spare Product
Power 9.4W maximum
Physical Interface: RJ-45 to BNC adapter cable option
Up to 8 independent T1 or E1 ports configurable as either all T1 or all E1 only
Channelized and fractional T1/E1, clear channel E1 supported
Internal or network clocking selectable on each port
Loopback capabilities

Cisco SPA-8XCHT1/E1 Compatibility:
Cisco 7600 Series routers
Cisco 12000 Series routers
Cisco XR 12000 Series routers
Cisco 7600 Series routers
Cisco 12000 Series routers
Cisco XR 12000 Series routers
