Manufacturer's Part#: Cisco SPA-4XT-SERIAL

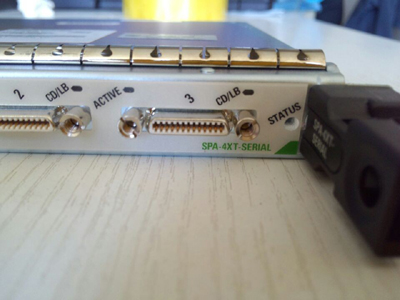

SPA-4XT-SERIAL 4-Port Serial Shared Port Adapter
SPA-4XT-SERIAL Cisco 4-Port Serial Shared Port Adapter - 4 x Synchronous Serial
The Cisco 4-Port Serial SPA delivers flexible, high-performance WAN connectivity for enterprise and service provider networks. It provides four synchronous serial ports, each capable of speeds up to 8 Mbps.
The Cisco 4-Port Serial SPA SPA-4XT-SERIAL delivers flexible, high-performance WAN connectivity for enterprise and service provider networks. It provides four synchronous serial ports, each capable of speeds up to 8 Mbps.
The Cisco 4-Port Serial SPA supports a variety of interface types determined by separately purchased cable type connected to it. The supported electrical standards include EIA-232, X.21, V.35, EIA-530, EIA-530A, and EIA-449. Each port can be configured independently of the others to provide superior flexibility.
The serial interfaces can be used to aggregate WAN connections from remote sites. The ability to support 8 Mbps per port is ideal for low- and medium-density aggregation at the head end. The Cisco 4-Port Serial SPA can also be installed wherever a service provider requires an external CSU / DSU demarcation point.
The Cisco 4-Port Serial SPA can be used to transport some synchronous legacy protocols (such as X.25) over an IP network. Serial synchronous ports also help lower costs for converged networks by eliminating the need for expensive leased lines to carry low-speed traffic that is commonly associated with legacy protocols.
SPA-4XT-SERIAL Product Highlights
•Four software-configurable serial ports
•Each port capable of 8 Mbps depending on the attached cable type
•Each port can support EIA-232, X.21, V.35, EIA-530, EIA-530A, and EIA-449 serial standards
•Capable of both DTE and DCE modes
•Support for all major encapsulations including High-Level Data Link Control (HDLC), frame relay, and Multilink Point-to-Point Protocol (MLPPP)
•Highly modular, flexible, intelligent interface processors
•Increased speed-to-service revenue
•Dramatically improved return on your routing investment
SPA-4XT-SERIAL General Specifications
Manufacturer Cisco
Manufacturer Part # SPA-4XT-SERIAL=
Manufacturer UPC # 0882658108747
Cost Central Item # 11117338
Product Description Cisco 4-Port Serial Shared Port Adapter - Expansion module - HDLC, Frame Relay, RS-232, PPP, RS-530, X.21, V.35, RS-449, RS-530A, MLPPP - 4 ports - for P/N: 7600-SIP-200=, 7600-SIP-200-RF, ASR1000-SIP10, ASR1000-SIP10=, ASR1000-SIP10-BUN
Device Type Expansion module
Form Factor Plug-in module
Approximate Dimensions (WxDxH) 6.8 in x 7.3 in x 0.8 in
Ports Qty 4 ports
Data Link Protocol HDLC, Frame Relay, RS-232, PPP, RS-530, X.21, V.35, RS-449, RS-530A, MLPPP
Data Transfer Rate 8 Mbps Extended Specifications
GeneralDevice Type Expansion module - 4 ports
Form Factor Plug-in module
SPA-4XT-SERIAL NetworkingConnectivity Technology Wired
Data Link Protocol HDLC, Frame Relay, RS-232, PPP, RS-530, X.21, V.35, RS-449, RS-530A, MLPPP
Data Transfer Rate 8 Mbps
Status Indicators Active, status
SPA-4XT-SERIAL Expansion / ConnectivityInterfaces 4 x serial - 26 pin Smart Serial
Compatible Slots 1 x expansion slot
SPA-4XT-SERIAL Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, ICES-003 Class A, EN300-386
SPA-4XT-SERIAL Dimensions & Weight
Approximate Width 6.8 in
Approximate Depth 7.3 in
Approximate Height 0.8 in
SPA-4XT-SERIAL Environmental ParametersMin Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 - 85%
SPA-4XT-SERIAL Compatibility Information:
Designed For P/N: 7600-SIP-200, 7600-SIP-200=, 7600-SIP-200-RF, ASR1000-SIP10, ASR1000-SIP10=, ASR1000-SIP10-BUN
SPA-4XT-SERIAL Compatible With
Cisco ASR 1000 Series SPA Interface Processor 10G
SPA-4XT-SERIAL Technical Information
Application/UsageData Networking
SPA-4XT-SERIAL Interfaces/Ports
Interfaces/Ports4 x Synchronous Serial
Interfaces/Ports Details4 x Synchronous Serial Serial
SPA-4XT-SERIAL Media & Performance
Connectivity MediaSerial Cable
Physical Characteristics
Dimensions0.8" Height x 6.8" Width x 7.3" Depth
SPA-4XT-SERIAL Miscellaneous
CompatibilityCisco Router Series:
•7600
•XR 12000
•ASR 1000
SPA-4XT-SERIAL Features:
•Ports : Four (4) port Serial Shared Port Adapter
•Compatible with : Cisco 7600, XR 12000, and ASR 1000 Series Router
•Form Factor : Plug in Module
•Model Number : SPA-4XT-Serial
•Part Number : SPA-4XT-Serial
•Condition : Used, tested, working, and sold with warranty.
Contact Sea Tel International for more information.
