SC/UPC Armoured Fiber Optic Patch cord cable

Product Description

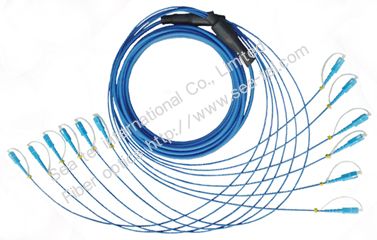

Fiber Optic Pigtail Cable

High Performance Field Fusion Splice Solution

✅ Product Overview

Pigtail end allows quick high-performance field fusion splice during installation, helping provide the lowest installed cost. 900μm tight-buffered fibers break out to terminated colored buffers for quick and easy identification of separate channels, ensuring accurate and efficient installations.

Connector Type
FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

Ferrule End-face
PC, UPC, APC

Core Type
Single-mode SM 9/125μm, Multimode MM 50/125μm or 62.5/125μm

Cable Quantity
Duplex, Simplex, 6 cores, 12 cores, etc.

Cable Diameter
Φ3.0mm, Φ2.0mm, Φ0.9mm

Cable Length
1m, 2m, 3m or customized

✔ Cable Type Options

PVC, LSZH, OM3, OFNR, OFNP, Plenum

✅ Technical Specification

Specification	PC			APC
Type	SM Standard	SM Max	MM Max	SM Max
Insertion Loss	≤0.15dB	≤0.3dB	≤0.3dB	≤0.3dB
Return Loss	≥55dB	≥50dB	≥25dB	≥60dB
