SC/PC Single mode Fiber Optic pigtail 0.9 1.5m

Product Description

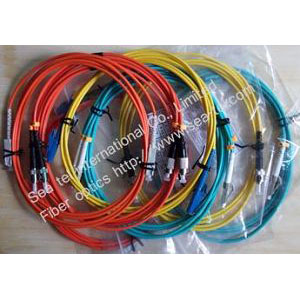

Fiber Optic Pigtail Cable

High Performance Field Fusion Splice Solution

✅ Product Overview

Fiber optic pigtails provide a quick and reliable solution for high-performance field fusion splicing during installation, helping reduce overall installation costs.

The 900μm tight-buffered fiber breaks out to terminated color-coded buffers for quick and easy identification of separate channels, ensuring accurate and efficient installation.

✅ Product Options

Connector Type
FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

Ferrule End-face
PC, UPC, APC

Core Type
Single-mode SM 9/125μm, Multimode MM 50/125μm or 62.5/125μm

Cable Quantity
Duplex, Simplex, 6 cores, 12 cores, etc.

Cable Diameter
Φ3.0mm, Φ2.0mm, Φ0.9mm

Cable Length
1m, 2m, 3m or customized

✔ Cable Type Options

PVC, LSZH, OM3, OFNR, OFNP, Plenum

✅ Technical Specification

Specification	PC			APC
Type	SM Standard	SM Max	MM Max	SM Max
Insertion Loss	≤0.15dB	≤0.3dB	≤0.3dB	≤0.3dB
Return Loss	≥55dB	≥50dB	≥25dB	≥60dB
