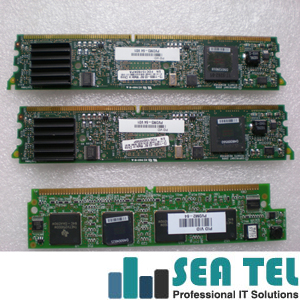

PVDM2-64
PVDM2-64

PVDM2-64

Product ID : Cisco PVDM Series
Product Description

Manufacturer Part#: Cisco PVDM2-64
PVDM2-64
Cisco Module

PVDM2-64 - 64-CHANNEL PACKET VOICE/FAX DSP MODULE

In stock and ready to ship

High-Density Packet Voice digital signal processor (DSP) Module (PVDM2) enables Cisco Systems Integrated Services Routers to provide high-density voice connectivity, conferencing, and transcoding capabilities in Cisco IP Communications solutions. Cisco Integrated Services Routers provide enterprises and service providers with a toll bypass solution by connecting their existing telephony equipment (such as private branch exchanges [PBXs], Key systems, analog telephones, and fax machines) to a toll-free data network; and eventually migrate customers to Cisco AVVID (Architecture for Voice, Video and Integrated Data) IP telephony solutions.

PVDM2-64 General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: 64-channel Packet Fax/Voice DSP Module
Product Type: PVDM

Cisco PVDM2-64 Interfaces/Ports
Interfaces/Ports Details: 64 x Channel
Cisco PVDM2-64 Processor & Chipset
Processor: 4 Digital Signal Processor

Cisco PVDM2-64 Environmental Conditions
Temperature: -25 degrees C (-13.0 degrees F) to 70 degrees C (158.0 degrees F) Storage
Temperature: 0 degrees C (32.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
Humidity: 5% to 95% Non-condensing Relative Humidity Non-operating
Humidity: 5% to 85% Non-condensing Relative Humidity Operating

Cisco PVDM2-64 Physical Characteristics
Shipping Dimensions: 3.5 Height x 10.5 Width x 16 Depth

Cisco PVDM2-64 Miscellaneous
Additional Information:
Max Channels for High Complexity : 24
Max Channels for Medium Complexity : 32
Range of Channels for Flexi Complexity : 24 - 64
High-complexity vocoders supported: G.711, G.726, G.729, G.723.1, G.728, GSM-EFR and Fax Relay
Medium-complexity vocoders supported: G.711, G.726, G.729a, GSM and Fax Relay
Flexi vocoders supported: G.711, G.726, G.729, G.723.1, G.728, and Fax Relay (number of channels depends on codec selected).
Max Channels for High Complexity : 24
Max Channels for Medium Complexity : 32
Range of Channels for Flexi Complexity : 24 - 64
High-complexity vocoders supported: G.711, G.726, G.729, G.723.1, G.728, GSM-EFR and Fax Relay
Medium-complexity vocoders supported: G.711, G.726, G.729a, GSM and Fax Relay
Flexi vocoders supported: G.711, G.726, G.729, G.723.1, G.728, and Fax Relay (number of channels depends on codec selected).

Cisco PVDM2-64 System Requirements:
IP Plus images and higher
This module use with NM-HDV2 network module only

Cisco PVDM2-64 Supported Platforms and IOS Requirements:

2600XM - 12.3(7)T
2691 - 12.3(7)T
3700 - 12.3(7)T

Cisco PVDM2-64 Memory Requirements for Supported Platforms:
2600XM:
64 MB DRAM
32 MB Flash
2691:
128 MB DRAM
32 MB Flash
3700:
128 MB DRAM
32 MB Flash
IP Plus images and higher
This module use with NM-HDV2 network module only
Supported Platforms and IOS Requirements:

2600XM - 12.3(7)T
2691 - 12.3(7)T
3700 - 12.3(7)T

Cisco PVDM2-64 Memory Requirements for Supported Platforms:
2600XM:
64 MB DRAM
32 MB Flash
2691:
128 MB DRAM
32 MB Flash
3700:
128 MB DRAM
32 MB Flash

Compatibility:
NM-HDV2
NM-HDV2-1T1/E1
NM-HDV2-2T1/E1
Platforms Supported:

2600XM series
2691
3700
3660
3640
3631

NM-HDV2
NM-HDV2-1T1/E1
NM-HDV2-2T1/E1
Platforms Supported:

2600XM series
2691
3700
3660
3640
3631


Cisco PVDM2-64 Certifications & Standards:
ITU Standard Voice Codecs:

•G.711
•G.726
•G.729
•G.723.1
•G.728
•G.729a
•G.723.1
•GSM
•GSM-EFR
