PVDM-12

Manufacturer Part#: Cisco PVDM-12

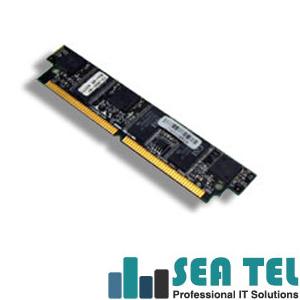

PVDM-12 Cisco Module

PVDM-12 - Cisco PVDM PVDM/12 - Voice DSP module

In Stock & Ready to Ship

Voice and FAX DSP module is installable into a NM-HDV. It contains three TI 549 DSPs along with the necessary DSP SRAM to process six high or medium complexity compressed voice channels (including FAX and PCM/G.711) or 12 medium complexity compressed voice channels (including FAX and PCM/G.711).

Cisco PVDM-12 General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: 12-Channel Packet Voice DSP Expansion Module
Product Type: Expansion Module

Cisco PVDM-12 Interfaces/Ports
 Interfaces/Ports Details: 12 x Channel

Cisco PVDM-12 Processor & Chipset
Processor: 3 Digital Signal Processor

Cisco PVDM-12 Physical Characteristics
Shipping Dimensions: 2 Height x 9.25 Width x 12.5 Depth

Cisco PVDM-12 Additional Information:
Voice & Fax Integration
VPN & Firewall Solutions
5 PVDM-12 modules may be used in a single Digital T1/E1 Packet Voice Trunk Network Module
Contains three TI 549 Digital Signal Processor
PVDM-12 fits into SIMM sockets on the NM-1HDV network module
Runs up to twelve voice calls using a medium complexity CODEC (G.711, G.729a/b, G.726, fax)
Runs up to six voice calls using a high complexity CODEC (G.729, G.728, G.723.1)
Voice & Fax Integration
VPN & Firewall Solutions
5 PVDM-12 modules may be used in a single Digital T1/E1 Packet Voice Trunk Network Module
Contains three TI 549 Digital Signal Processor
PVDM-12 fits into SIMM sockets on the NM-1HDV network module
Runs up to twelve voice calls using a medium complexity CODEC (G.711, G.729a/b, G.726, fax)
Runs up to six voice calls using a high complexity CODEC (G.729, G.728, G.723.1)

PVDM-12 System Requirements:
Use in the NM-HDV Series Modules
Supported Platforms & Minimum IOS Versions:

3660 series - 12.0(5)XK
3640 - 12.0(5)XK
3620 - 12.0(5)XK
2691 - 12.2(8)T1
2600XM Series - 12.1(14) or 12.2(8)T1
2600 series - 12.0(5)XK

PVDM-12 Supported Platforms & Minimum IOS Versions:
3660 series - 12.0(5)XK
3640 - 12.0(5)XK
3620 - 12.0(5)XK
2691 - 12.2(8)T1
2600XM Series - 12.1(14) or 12.2(8)T1
2600 series - 12.0(5)XK

PVDM-12 Compatibility:
NM-HDV-1E1-12
NM-HDV-1E1-30
NM-HDV-2E1-60
NM-HDV-1T1-12
NM-HDV-1T1-24
NM-HDV-1T1-24E
NM-HDV-2T1-48

PVDM-12 Supported Platforms:
3660 series
3640
3620
2691
2600XM series
2600 series
VG200
3725
3745

NM-HDV-1E1-12
NM-HDV-1E1-30
NM-HDV-2E1-60
NM-HDV-1T1-12
NM-HDV-1T1-24
NM-HDV-1T1-24E
NM-HDV-2T1-48

PVDM-12 Certifications & Standards:
Medium Complexity CODEC:
•G.711
•G.729a/b
•G.726

High Complexity CODEC:
•G.729
•G.728
•G.723.1
