PIX-4FE-66
PIX-4FE-66

PIX-4FE-66

Product ID : Cisco Interface & Line Card
Product Description

Manufacturer Part#: Cisco PIX-4FE-66
PIX-4FE-66 Cisco Interface & Line Card

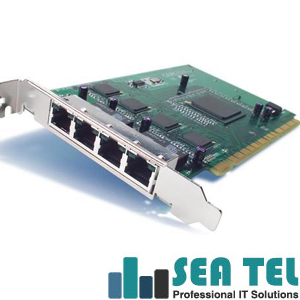

PIX-4FE-66 - 4 x 10/100Base-TX - Fast Ethernet Module

In stock  and Ready to ship

Ciscor PIXr 64-bit/66-MHz four-port Fast Ethernet interface card delivers high performance PCI interface, increased port density per PCI slot, and ease of integrating with the world-leading Cisco PIX Security Appliance Series. For small-to-medium business to large enterprise and service provider networks, the Cisco PIX Security Appliance Series offers extensible solutions providing robust, enterprise-class, and integrated network security services with a solid investment protection. The Fast Ethernet card takes full advantage of this extensibility by providing high-performance interfaces for stateful inspection firewalling, protocol and application inspection, virtual private networking (VPN), in-line intrusion protection, and rich multimedia and voice security services in an easy-to-deploy solution.

Cisco PIX-4FE-66 General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: Network Adapter
Product Type: Fast Ethernet Card

Cisco PIX-4FE-66 Interfaces/Ports
Host Interface: PCI
Number of Ports: 4
Interfaces/Ports: 4 x RJ-45

Cisco PIX-4FE-66 Media & Performance
Twisted Pair Cable Standard: Category 5
Cisco PIX-4FE-66 Network & Communication
Network Technology: 10/100Base-TX

Cisco PIX-4FE-66 Management & Protocols
Protocols: Ethernet
Protocols: Fast Ethernet
Cisco PIX-4FE-66 Processor & Chipset
Processor: 4 x Intel 82559
Cisco PIX-4FE-66 Power Description
Power Consumption: 10 W

Cisco PIX-4FE-66 Environmental Conditions
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -40 degrees F (-40.0 degrees C) to 158 degrees F (70.0 degrees C) Non-operating
Humidity: 85% Relative Humidity Operating

Cisco PIX-4FE-66 Physical Characteristics
Form Factor: Internal
Dimensions: 5 Height x 6.5 Width
Shipping Dimensions: 2.75 Height x 10.5 Width x 16 Depth
Weight: 4.8 oz
Shipping Weight: 2.09 lb


Cisco PIX-4FE-66 Compatibility:
Operating System: Cisco PIX OS versions 5.2(9), 6.0(4), 6.1(4), 6.2(2), and 6.3(1) or later
Platforms: Cisco PIX, 515/515E, 520, 525, 535 Security Appliances

Certifications & Standards:
IEEE support: 802.2 and 802.3
Safety:
UL 60950
CAN/CSA-C22.2 No.60950
EN 60950
IEC 60950
CE Marking
Electro Magnetic Compatibility (EMC):
FCC Part 15 (CFR 47) Class A
CISPR22 Class A
ICES-003 Class A
EN55022 Class A
EN300386
EN55024
EN50082-1
EN61000-3-2
EN61000-3-3
EN61000-6-1
VCCI Class A
AS/NZS 3548 Class A
CE Marking
Cisco PIX-4FE-66 Original Manufacturer Warranty
Standard Warranty: 90 Day
