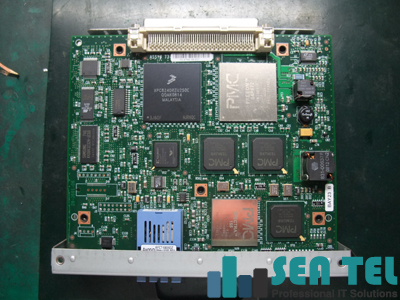

PA-A6-OC3SMI

Manufacturer Part#: Cisco PA-A6-OC3SMI
PA-A6-OC3SMI Cisco Interface & Line card

PA-A6-OC3SMI - 1 Port Enh ATM OC3c/STM1 Singlemode(IR)Port Adapter

Cisco OC-3c/STM-1 Enhanced ATM Port Adapter supports advanced ATM hardware features such as per-virtual circuit and per-virtual path traffic shaping, as well as all ATM service classes such as real time variable bit rate (VBR-rt), constant bit rate (CBR), non-real-time variable bit rate (VBR-nrt), available bit rate (ABR), and unspecified bit rate (UBR). It also supports 8191 ATM virtual circuits.

Cisco PA-A6-OC3SMI General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: One-port ATM OC-3c/STM-1 Single-mode (IR) Port Adapter
Product Type: Port Adapter

Cisco PA-A6-OC3SMI Interfaces/Ports:
Interfaces/Ports: 1 x OC-3c/STM-1
Interfaces/Ports Details: 1 x SC Duplex Connector OC-3c/STM-1

Cisco PA-A6-OC3SMI Media & Performance:
Connectivity Media: 9 micron Single-mode Fiber
Distance Support: 15 km Single-mode Fiber
Data Transfer Rate: 155.52Mbps OC-3c/STM-1

Cisco PA-A6-OC3SMI Management & Protocols:
Management:
MIB II
Synchronous Optical Network (SONET) MIB
AToM MIB
ATM ILMI MIB
LANE MIB
DS3/E3 MIB
MIB II
Synchronous Optical Network (SONET) MIB
AToM MIB
ATM ILMI MIB
LANE MIB
DS3/E3 MIB

Cisco PA-A6-OC3SMI Controls/Indicators:
Status Indicators:
ENABLED
RX CELLS
RX CARRIER
RX ALARM
TX CELLS
ENABLED
RX CELLS
RX CARRIER
RX ALARM
TX CELLS

Cisco PA-A6-OC3SMI Environmental Conditions:
Temperature: 10 degrees C (50.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
Humidity: 0% to 90% Non-condensing

Cisco PA-A6-OC3SMI Original Manufacturer Warranty:
Standard Warranty: 90 Day Limited
