NPE-G2

Manufacturer Part# Cisco NPE-G2

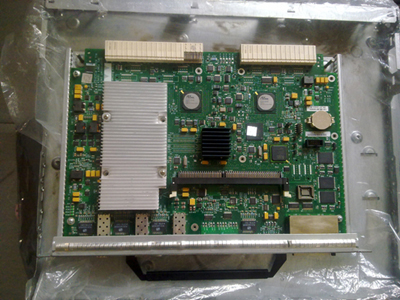

NPE-G2 Cisco NPE-G2 Network Processing Engine For Cisco 7206VXR / 7204VXR

NPE-G2 orts: 3 Gigabit Ethernet Ports, 1 100MBs port, 2 USB (v1.1 & v2.0)


To continue to meet the increasing need for performance for integrated services at the branch office and headquarters and to maintain exceptional value and flexibility, Cisco Systems introduces the newest processor for the Cisco 7200VXR Series-the Cisco 7200VXR NPE-G2 Network Processing Engine. The Cisco NPE-G2 addresses the demand for performance and flexibility by further increasing its processing capacity and enabling the latest Cisco IOS Software features.

Cisco NPE-G2 General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Model: NPE-G2
Product Name: NPE-G2 Network Processing Engine
Product Type: Network Processing Engine

Cisco NPE-G2 Interfaces/Ports
Interfaces/Ports: 3 x 10/100/1000Base-T
Interfaces/Ports Details: 3 x RJ-45 10/100/1000Base-T
Interfaces/Ports Details: 1 x Auxiliary Management
Interfaces/Ports Details: 2 x USB
Interfaces/Ports Details: 1 x Fast Ethernet Management
Interfaces/Ports Details: 1 x Console Management


The Cisco NPE-G2 is the latest high performance Network Processing Engine for the Cisco 7200 series modular routers. The NPE-G2 delivers double the performance of the NPE-G1 and offers three Gigabit Ethernet ports, one 100Mbs management port, and two USB ports for additional storage via USB memory sticks. Because of the built in interfaces and management port, an I/O controller is optional but not necessary. The NPE-G2 also has double the PCI bus speed on the I/O slot which dramatically increases the performance when using the VPN Services Adpapter (VSA) with the 7200XVR series routers

With requirements for high-speed network connectivity growing every day, Enterprise and Service Provider customers want high performance today and investment protection for the future. The Cisco NPE-G2 addresses the demand for performance and flexibility by further increasing its processing capacity and helping enable the latest Cisco IOS Software features.

Cisco NPE-G2 Media & Performance
Connectivity Media: Copper 10/100/1000Base-T
Data Transfer Rate: 10Mbps Ethernet
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 1Gbps Gigabit Ethernet

Cisco NPE-G2 I/O Expansions
Expansion Slots: 1 x CompactFlash Card Slot
Expansion Slots: 3 x SFP (mini-GBIC) Free

Cisco NPE-G2 Physical Characteristics
Dimensions: 1.4 Height x 15.15 Width x 11.12 Depth

Cisco NPE-G2 Miscellaneous
Additional Information:
Refurbished
No Returns
1 GB of DRAM default memory
Backward compatibility with existing port adapters
Double the speed of the peripheral component interconnect bus on the I/O slot
Support for third peripheral component interconnect (PCI) bus to the I/O controller slot
Performance of up to 2 million packets per second (pps) in Cisco Express Forwarding switching

NPE-G2 Key Features:
Performance up to 2Gbps
3 Gigabit interfaces
2 USB interfaces
All port adapters that are supported with the Cisco NPE-G1 are compatible with the Cisco NPE-G2, except those with the following part numbers: PA-SRP-OC12, PA-FC-1G, SA-VAM, and SA-VAM2.
Feature rich, extensively deployed Cisco IOS Software
Double the Speed of the PCI Bus on the I/O slot
Storage relative humidity: 5 to 95 percent relative humidity (RH)

The NPE-G2 is compatible with the following Cisco 7200 Series chassis:
Cisco 7204VXR
Cisco 7206VXR

NPE-G2 Environmental:
Storage temperature: -38° to 150°F (-40° to 70°C)
Operating temperature, nominal: 41° to 104°F (5° to 40°C)
Operating temperature, short-term: 23° to 131°F (-5° to 55°C)
Operating humidity, nominal: 5 to 85 percent RH
Operating humidity, short term: 5 to 90 percent RH
Operating altitude: -60 to 4000m

NPE-G2 1 GB of DRAM default memory
Backward compatibility with existing port adapters
Double the speed of the peripheral component interconnect bus on the I/O slot
Support for third peripheral component interconnect (PCI) bus to the I/O controller slot
Performance of up to 2 million packets per second (pps) in Cisco Express Forwarding switching

NPE-G2 Compatibility:
Cisco 7200 Series Routers
