N5K-C5548P-FA

Manufacturer Part#: Cisco N5K-C5548P-FA
N5K-C5548P-FA Cisco Nexus 5548P Switch Chassis (N5K-C5548P-FA)

N5K-C5548P-FA

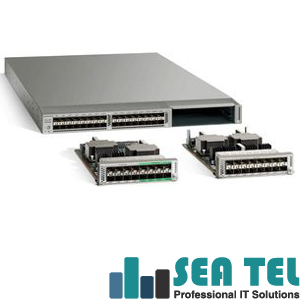

The Cisco Nexus 5548P is a one-rack-unit. All ports are at the rear of the switches, simplifying cabling and reducing cable length. Cooling is front-to-back, supporting hot- and cold-aisle configurations that help increase cooling efficiency. The front panel includes status indicators and hot swappable power supplies and their power entry connections and cooling modules. All serviceable components are accessible from the front panel, allowing the switch to be serviced while in operation and without disturbing network cabling.
The Cisco Nexus 5548 10 Gigabit Ethernet, Cisco Data Center Ethernet, FCoE, andFibre Channel switch providing more than 960-Gbps throughput with very low latency. It has 32 fixed 10 Gigabit Ethernet, Cisco Data Center Ethernet, and FCoE SFP+ ports. One expansion moduleslot can be configured to support up to 6 additional 10 Gigabit Ethernet, Cisco Data CenterEthernet, and FCoE SFP+ ports, up to 8 Fibre Channel switch ports, or a combination of 4additional 10 Gigabit Ethernet, Cisco Data Center Ethernet, and FCoE SFP+ ports with 4additional 4/2/1-Gbps Fibre Channel switch ports.

N5K-C5548P-FA General Information
Manufacturer:  Cisco Systems, Inc
Manufacturer Part Number:  N5K-C5548P-FA
Brand Name:  Cisco
Product Line:  Nexus
Product Series:  5000
Product Model:  5548P
Product Name:  Nexus 5548P Switch Chassis
Marketing Information:  The Cisco Nexus 5548P Switch is the first of the Cisco Nexus 5500 Platform. It is a one-rack-unit (1RU) 10 Gigabit Ethernet and FCoE switch offering up to 960-Gbps throughput and up to 48 ports. The switch has 32 1/10-Gbps fixed Small Form-Factor Pluggable Plus (SFP+) Ethernet and FCoE ports and one expansion slot.
Refurbished:  Not Applicable
Product Type:  Switch Chassis

N5K-C5548P-FA Interfaces/Ports
Number of Ports:  Not Applicable
Ethernet Port:  Yes
Fast Ethernet Port:  Yes
Gigabit Ethernet Port:  Yes
10Gigabit Ethernet Port:  Yes
Token Ring Port:  Not Applicable
LRE Port:  Not Applicable
DSL Port:  Not Applicable
Interfaces/Ports:  1 x RJ-45 10/100/1000Base-T Network Management

N5K-C5548P-FA Media & Performance
Broadband Transmission Speed:  Not Applicable
Broadband Transmission Technology:  Not Applicable
Powerline Transmission Speed:  Not Applicable
Powerline Transmission Standard:  Not Applicable
Forwarding/Filtering Rate:  714.2 Mpps
Switching Throughput:  960 Gbps

N5K-C5548P-FA I/O Expansions
Number of Expansion Slots:  33
Expansion Slots:  (1 Total /1 Free) Expansion Slot
(32 Total /32 Free) SFP+

N5K-C5548P-FA Network & Communication
Layer Support:  2
Number of Stacks:  Not Applicable

N5K-C5548P-FA Management & Protocols
Manageable:  Yes
Management:  IEEE 802.1Q VLAN
IEEE 802.1p QoS
CLI
DHCP
Telnet
Syslog
SNMP v1, v2, and v3
RMON
CiscoWorks LAN Management Solution
Cisco Fabric Manager
Cisco Data Center Network Manager

N5K-C5548P-FA Software
Operating System:  Cisco NX-OS

N5K-C5548P-FA Power Description
Power Over Ethernet:  Not Applicable
Input Voltage:  110 V AC
220 V AC
Input Voltage Range:  100 V AC to 240 V AC
Power Source:  Power Supply

N5K-C5548P-FA Physical Characteristics
Compatible Rack Unit:  1U
Form Factor:  Rack-mountable
Dimensions:  1.72" Height x 17.30" Width x 29.50" Depth
Weight (Approximate):  35 lb

N5K-C5548P-FA Shipping Information
Shipping Dimensions :  9.75" Height x 22.0" Width x 36.5" Depth
Shipping Weight :  40.0 lb

N5K-C5548P-FA Miscellaneous
Package Contents:  Nexus 5548P Switch Chassis
2 x 750W AC Power Supplies
Fan Trays

N5K-C5548P-FA Green Compliance:  Yes
Green Compliance Certificate/Authority:  RoHS-6

N5K-C5548P-FA Warranty
Standard Warranty:  1 Year Limited

Contact Sea Tel International for more information
