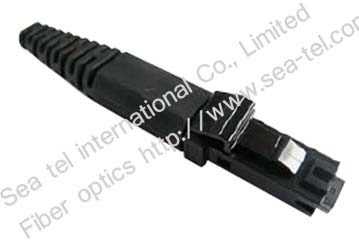

MT-RJ fiber optic Connector Item Single mode Multi mode Insertion loss PC0.20dB, UPC 0.25dB, APC 0.25dB 0.3dB Return loss PC 50 dB, UPC 55 dB & APC 60 dB 25dB Insert-pull test 1000(times) 0.2dB Operating temp -40~ +80 Ceramic ferrule spec 125.5um concentricity deviations:1um 127um concentricity deviations:3um Suitable fiber PC/APC(9/125um) PC(50/125um, 62.5/125um)
- MT-RJ Connector is becoming more popular in datacom applications which use duplex transceivers.
- It uses almost the same real estate in the patch panel and networking equipment as other 2.5mm ferrule connectors but doubles the port capacity.
- The MTRJ connector has an improved version of RJ-45 type plug. This latching mechanism ensure easy to use. MTRJ adapter with approximately same space as a simplex SC adapter
Features:
- Small form connector
- High quality thermostatic ferrule
- Side pulling proof
- Compact size
Availability:
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Clips are available for SC and LC duplex connectors
- Housing kits without ferrule are available.
-PC and APC are available
Specifications:
