Product ID : Cisco ME3800X Carrier Ethernet Switch Router
Product Description

Manufacturer Part#: Cisco ME-3800X-24FS-M
ME-3800X-24FS-M

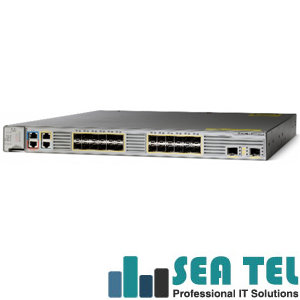

Cisco ME3800X Carrier Ethernet Switch Router

ME-3800X-24FS-M
 - Cisco ME3800X Carrier Ethernet Switch Router 24 GE SFP+2 10GE SFP+

In stock and ready to ship

Cisco ME 3800X series carrier Ethernet switch router is a converged, full-featured aggregation platform purposely designed for the mobile, business, and residential markets. With low power consumption and high service scale, this 1-rack-unit (1RU) switch router is optimized for small aggregation and remote point-of-presence (POP) applications making it a highly cost effective option.

ME-3800X-24FS-M Details:
Device Type: Switch - 24 ports - managed
Enclosure Type: Desktop, rack-mountable, wall-mountable - 1U
Ports: 24 x SFP + 2 x SFP+
Bandwidth : 44 Gbps
Forwarding performance : 65 Mpps
Remote Management Protocol: SNMP 1, SNMP 2, SNMP 3

ME-3800X-24FS-M Key Hardware Features and Options:

• 1RU, fixed-form-factor platforms
• 24 Gigabit Ethernet port and two 10 Gigabit Ethernet ports
• Hot-swappable and field-replaceable integrated power supply and fan tray
• AC or DC power supply with DC input ranging from 18V to 32 VDC and 36V to 72 VDC
• Ethernet and console port for manageability
• Secure digital (SD) flash card slot for additional external storage
• One external timing input (BITS)
• Stratum 3 network clock
• Line-rate performance with 65-mpps forwarding rate
• Support for dying gasp on loss of power
• Support for a variety of small form-factor pluggable (SFP) and SFP+ with support for digital optical monitoring (DOM)
• Generic on-line diagnostics (GOLD) and onboard failure logging (OBFL) help prevent system issues before they occur
• Deep buffers designed to accommodate today's cloud and mobile applications

ME-3800X-24FS-M Specifications:
Device Type Switch - 24 ports - Managed
Enclosure Type Desktop, rack-mountable, wall-mountable - 1U
Ports 24 x SFP + 2 x SFP+
Performance Bandwidth : 44 Gbps
Forwarding performance : 65 Mpps
Remote Management Protocol SNMP 1, SNMP 2, SNMP 3

ME-3800X-24FS-M Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag
Power Redundancy Optional

ME-3800X-24FS-M Dimensions
(WxDxH) 44.45 cm x 51.79 cm x 4.37 cm
Weight 6.57 kg
