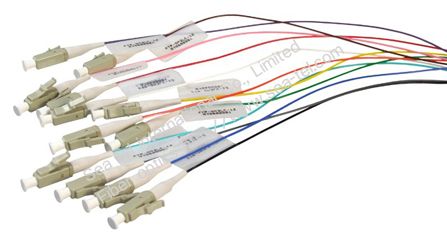

LC/PC MM OM1 Fiber Optic Pigtail 12 colours

Product Description

Pigtail end allows quick high performance field fusion splice during installation to provide the lowest installed cost 900μ M tight-buffered fibers break out to terminated colored buffers for quick and easy identification of separate channels for accurate installations

Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity: Duplex, Simplex, 6cores, 12cores. etc
Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
Cable Length: 1, 2, 3 meter or customized
Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

Specification	PC			APC
Type	SM(standard)	SM(Max)	MM(Max)	SM(Max)
Insertion Loss	≤0.15dB	≤0.3dB	≤0.3dB	≤0.3dB
Return Loss	≥55dB	≥50dB	≥25dB	≥60dB
