Product Description

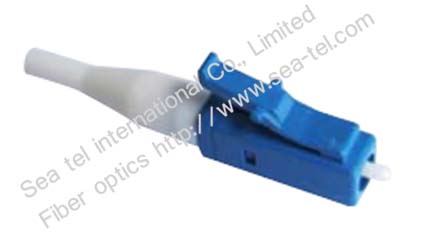

LC Fiber optic Connector:

- Housing kits without ferrule are available.
- LC/PC and LC/APC are available.
- Single mode LC connector & multimode LC connector available
- Simplex LC connector & duplex LC connector available

Features:
- Low insertion loss and back reflection loss
- Half the dimension of a regular connectors
- Push & pull mechanism like RJ connectors
- High precision alignment
- Compact, pull-proof design
- Complies with industry standards
- Detachable clips for simplex as well as duplex connectors
- Behind-the-Wall style short connector

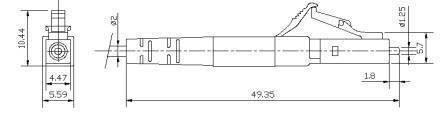

Drawing:




Specifications:

LC connector Specifications



Single mode

Multimode

Insertion Loss

<0.20dB

<0.25dB

Return Loss

>55 dB (PC)  >65 dB (APC)

Durability

<0.20 dB typical change, 1000 matings
