Product Description

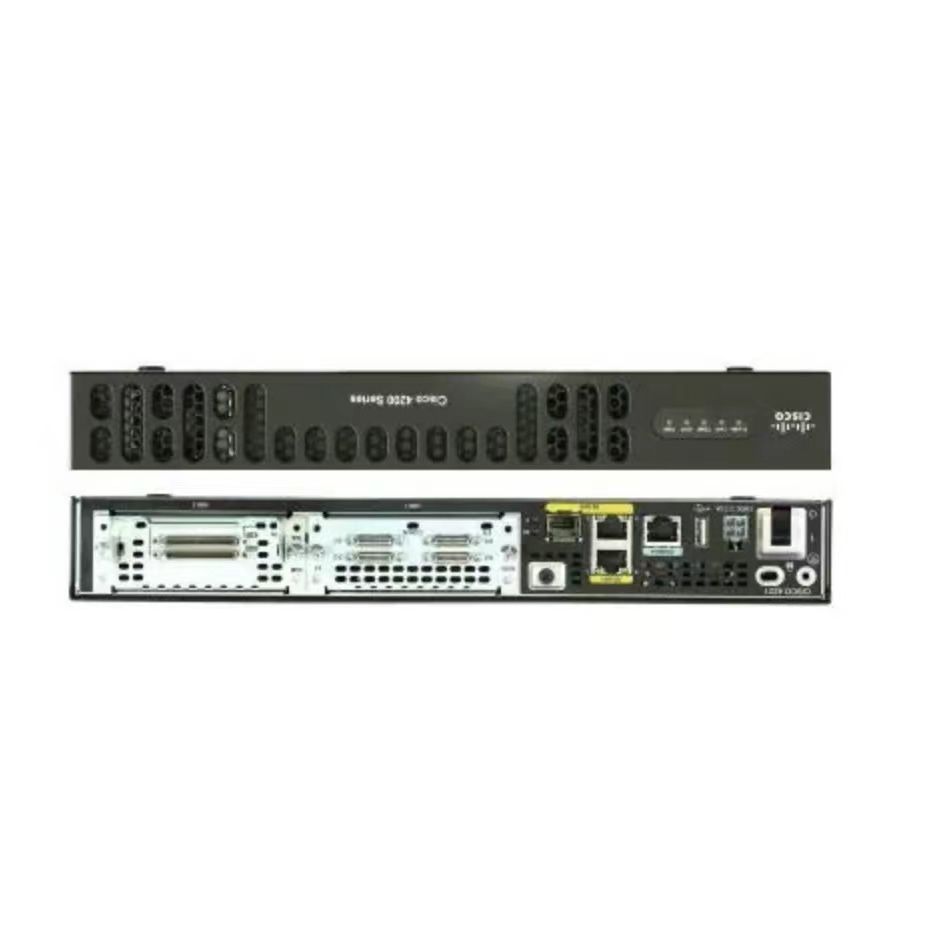

ISR4221/K9
Cisco 4221 Integrated Services Router
| ISR4221/K9 SPECIFICATIONS | ISR4221/K9 SPECIFICATIONS | ||
|
Airflow
|
I/O side to bezel side |
Maximum power with AC power supply (watts)
|
90 |
|
Temperature (Storage)
|
-40 to 158 F (-40 to 70 C) |
SFP-based ports
|
1 |
|
Weight with AC PS (no modules)
|
7.1 lb (3.22kg) |
RJ-45-based ports
|
2 |
|
Maximum flash memory
|
8GB |
Shipping Box Dimensions (Metric - H x W x D)
|
104.9 x 463.6 x 328.7 mm |
|
Packaging Weight
|
1.28 lb (0.58kg) |
Serial auxiliary port - RJ45 (up to 115.2 kbps)
|
1 (combo CON/AUX port) |
|
PoE Support
|
None |
Relative humidity (operating)
|
5% to 85% |
|
OIR (all I/O modules)
|
No |
Relative humidity (storage)
|
5% to 95% |
|
Wall Mount
|
Yes |
AC input current range, AC power supply (maximum)
|
1.5 to 0.6A |
|
Power-supply options
|
External AC only |
Total onboard WAN or LAN 10/100/1000 ports
|
2 |
|
Typical weight (fully loaded with modules)
|
8.11 lb (3.68kg) |
Dimensions (inches)
|
1.72 x 12.7 x 10" |
|
Onboard ISC slot
|
No |
External USB 2.0 slots (type A)
|
1 |
|
Aggregate Throughput (Mbps)
|
35 to 75 |
Acoustics: Sound pressure (Typical/maximum)
|
28.5/53 Dba |
|
External Power Supply Dimensions (H x W x D)
|
37 x 73 x 152 mm (Phihong mfg PN: AA90U-120A-R), 36.5 x 67 x 155 mm (Delta mfg PN: ADP90GR BA) |
Acoustics: Sound power (Typical/maximum)
|
41 / 68 dBA |
|
AC input surge current
|
90 A peak and less than 3 Arms per half cycle |
Shipping Box Dimensions (Inches - H x W x D)
|
4.13 x 18.25 x 12.94" |
|
AC input Voltage
|
100 to 240 VAC autoranging |
Altitude (China)
|
0 – 6,560 ft. (0 – 2,000 m) |
|
Altitude (storage)
|
15,584 ft (4750m) |
NIM slots
|
2 |
|
Typical power (no modules) (watts)
|
24 |
Default flash memory
|
8GB |
|
Form factor
|
1 rack unit (RU), desktop |
Dimensions (metric)
|
43.7 x 322.6 x 254 mm |
|
Temperature (Operating)
|
32 to 104 F (0 to 40 C) |
Rack-mount 19in. (48.3 cm) EIA
|
Optional |
|
MTBF (Hours)
|
593270 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM
|
4GB |
|
Altitude (Rest of the world)
|
0 – 10,000 ft. (0 – 3,050 m) |
Serial console port - RJ45 (up to 115.2 kbps)
|
1 (combo CON/AUX port) |
|
AC input frequency
|
47 to 63 Hz |
Maximum memory DDR3 ECC DRAM
|
4GB |
