Product Description
Manufacturer Part#: Cisco IAD2421-16FXS

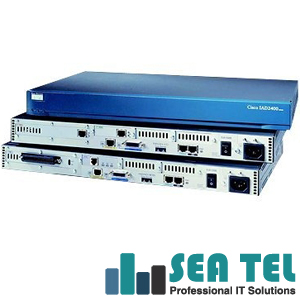

IAD2421-16FXS Cisco VoIP Gateway
IAD2421-16FXS - 16 x , 1 x WAN, 1 x LAN, 1 x WAN - VoIP Gateway
The Cisco IAD2421 integrated access device (IAD) aggregates multiple channels of data and voice/fax user-side traffic for transport over a single wide-area network (WAN) uplink. Voice/fax traffic is transported by Voice over Internet Protocol (VoIP) or by Voice over Asynchronous Transport Protocol(VoATM).
Cisco IAD2421-16FXS General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2420
Product Model: 2421
Product Name: 2421 VoIP Gateway
Product Type: VoIP Gateway
Cisco IAD2421-16FXS Interfaces/Ports:
Interfaces/Ports: 16 x FXS
Interfaces/Ports: 1 x RJ-21 WAN
Interfaces/Ports: 1 x RJ-48C T1 WAN
Interfaces/Ports: 1 x RJ-45 10Base-T LAN
Interfaces/Ports: 1 x DB-60 Serial WAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management
Cisco IAD2421-16FXS Media & Performance:
Data Transfer Rate: 1.54Mbps T1
Data Transfer Rate: 10Mbps Ethernet
Cisco IAD2421-16FXS Management & Protocols:
Management:
CLI
Simple Network-enabled Auto-Provision (SNAP)
SNMP-based application CiscoView or HP OpenView
HTTP-based configuration server Provides access to the CLI from a web browser
CLI
Simple Network-enabled Auto-Provision (SNAP)
SNMP-based application CiscoView or HP OpenView
HTTP-based configuration server Provides access to the CLI from a web browser
Cisco IAD2421-16FXS Power Description:
Input Voltage: 100 V AC to 240 V AC Power Supply
Cisco IAD2421-16FXS Physical Characteristics:
Form Factor: 19 Rack-mountable
Form Factor: Desktop
Form Factor: Wall-mountable
Dimensions: 1.75 Height x 17.5 Width x 10.56 Depth
Weight: 10 lb Maximum
IAD2421-16FXS Cisco VoIP Gateway
IAD2421-16FXS - 16 x , 1 x WAN, 1 x LAN, 1 x WAN - VoIP Gateway
The Cisco IAD2421 integrated access device (IAD) aggregates multiple channels of data and voice/fax user-side traffic for transport over a single wide-area network (WAN) uplink. Voice/fax traffic is transported by Voice over Internet Protocol (VoIP) or by Voice over Asynchronous Transport Protocol(VoATM).
Cisco IAD2421-16FXS General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2420
Product Model: 2421
Product Name: 2421 VoIP Gateway
Product Type: VoIP Gateway
Cisco IAD2421-16FXS Interfaces/Ports:
Interfaces/Ports: 16 x FXS
Interfaces/Ports: 1 x RJ-21 WAN
Interfaces/Ports: 1 x RJ-48C T1 WAN
Interfaces/Ports: 1 x RJ-45 10Base-T LAN
Interfaces/Ports: 1 x DB-60 Serial WAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management
Cisco IAD2421-16FXS Media & Performance:
Data Transfer Rate: 1.54Mbps T1
Data Transfer Rate: 10Mbps Ethernet
Cisco IAD2421-16FXS Management & Protocols:
Management:
CLI
Simple Network-enabled Auto-Provision (SNAP)
SNMP-based application CiscoView or HP OpenView
HTTP-based configuration server Provides access to the CLI from a web browser
CLI
Simple Network-enabled Auto-Provision (SNAP)
SNMP-based application CiscoView or HP OpenView
HTTP-based configuration server Provides access to the CLI from a web browser
Cisco IAD2421-16FXS Power Description:
Input Voltage: 100 V AC to 240 V AC Power Supply
Cisco IAD2421-16FXS Physical Characteristics:
Form Factor: 19 Rack-mountable
Form Factor: Desktop
Form Factor: Wall-mountable
Dimensions: 1.75 Height x 17.5 Width x 10.56 Depth
Weight: 10 lb Maximum
