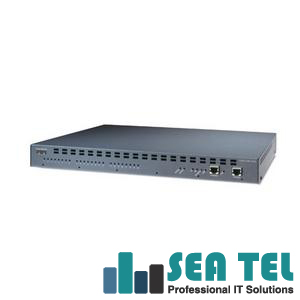

DPA-7630
DPA-7630

DPA-7630

Product ID : VoIP Gateway
Product Description
Manufacturer Part#: Cisco DPA-7630
DPA-7630 Cisco VoIP Gateway

DPA-7630 - Dpa 7630 Voice Mail Gateway. 24 Ports, 4 Wire Avaya/Octel

Cisco DPA Series of voice mail gateways is a family of Voice over IP (VoIP) gateways that enables legacy voicemail equipment to connect to a Cisco IP telephony solution network. The Cisco DPA Series allows Octel voice mail systems, which currently use Digital Station Emulation to connect to an Avaya Definity PBX, or a Nortel Meridian 1 PBX, to instead connect to a Cisco CallManager system without any changes to the voice mail system. The Cisco DPA Series allows the voice mail system to be used solely by the Cisco CallManager or to be shared between the Cisco CallManager and the private branch exchange (PBX). The Cisco DPA Series communicates with the Cisco CallManager by emulating IP phones using an autosensing 10/100 Ethernet port. The Cisco DPA Series communicates with the PBX and voice mail system using 24, digital station lines. The Cisco DPA Series is easily configured using a simple menu system accessed with Telnet. The Cisco CallManager is easy to configure it can even be done automatically using the auto registration feature.

Cisco DPA-7630 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: DPA 7600
Product Name: DPA Series Voice Mail 7630 Gateway
Product Type: VoIP Gateway

Cisco DPA-7630 Technical Information:
Voice Codec: G.711
Voice Codec: G.729a

Cisco DPA-7630 Interfaces/Ports:
Interfaces/Ports: 3 x RJ-21
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x RJ-45 Management

Cisco DPA-7630 Media & Performance:
Connectivity Media: Twisted Pair 10/100Base-TX
Data Transfer Rate: 100Mbps Fast Ethernet
Data Transfer Rate: 10Mbps Ethernet

Cisco DPA-7630 Management & Protocols:
Management:
SNMP
Management Information Bases
TFTP
FTP
SNMP
Management Information Bases
TFTP
FTP

Cisco DPA-7630 Power Description:
Input Voltage: 100 V AC to 240 V AC

Cisco DPA-7630 Physical Characteristics:
Form Factor: 19 Rack-mountable
Dimensions: 1.75 Height x 17.25 Width x 15.5 Depth
Weight: 11.5 lb

Cisco DPA-7630 Additional Information:
Avaya G3V3 and above
Octel 200 and 300 (Aria)
Octel 250 and 350 (Serenade)
3-pin IEC AC adapter
Three RJ-21 telco connectors for connection to Octel and Definity systems
Avaya G3V3 and above
Octel 200 and 300 (Aria)
Octel 250 and 350 (Serenade)
3-pin IEC AC adapter
Three RJ-21 telco connectors for connection to Octel and Definity systems
