CP-7940
CP-7940

CP-7940

Product ID : Cisco IP Phone
Product Description
Manufacturer Part#: Cisco CP-7940

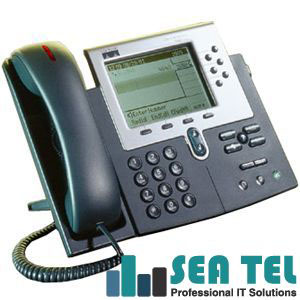

CP-7940 Cisco IP phone

CP-7940 - IP Phone CISCO IP PHONE 7940, BUSINESS SET
Cisco IP phone family includes phones with large pixel-based displays to bring productivity enhancing applications to the phone, as well as customization options that can be modified as needs change, and provide inline power support over Ethernet. The Cisco IP Phone 7940G is multi-protocol enabled supporting Session Initiated Protocol (SIP), Media Gateway Control Protocol (MGCP), as well as Cisco's CallManager Skinny Client Control Protocol (SCCP).

CP-7940 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 7900
Product Name: 7940 IP Phone
Product Type: IP Phone

Cisco CP-7940 Technical Information:
Phone Lines: 2 - Programmable
Phone Features: Network Configuration
Phone Features: Ring Type
Phone Features: Date and Time
Phone Features: Calling Party Name
Phone Features: Call Status
Phone Features: Display Contrast
Phone Features: Calling Party Number
Phone Features: Digits Dialed
Phone Features: Comfort Noise Generation
Phone Features: Voice Activity Detection
IP Phone Technology: VoIP
Dialer Type: Dial Pad

Cisco CP-7940 Network & Communication:
Quality of Service: 802.1Q VLAN Support

Cisco CP-7940 Display & Graphics:
Display Screen: LCD - Pixel-Based

Cisco CP-7940 Management & Protocols:
Protocols: TFTP
Protocols: DHCP
Communication Protocols: MGCP
Communication Protocols: H.323
Communication Protocols: SCCP
Communication Protocols: SIP
Security Features:
The audible dual-tone multifrequency (DTMF) tones are masked when the speakerphone mode is used
The audible dual-tone multifrequency (DTMF) tones are masked when the speakerphone mode is used

Cisco CP-7940 Controls/Indicators:
Buttons & Keys: 1 x Microphone Mute Button
Buttons & Keys: 1 x Volume Control Button
Buttons & Keys: 1 x Services
Buttons & Keys: 1 x Help
Buttons & Keys: 1 x Speaker On/Off Button
Buttons & Keys: 4 x Soft Key
Buttons & Keys: 1 x Messages
Buttons & Keys: 1 x Settings
Buttons & Keys: 1 x Directories

Cisco CP-7940 Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: 14 degrees F (-10.0 degrees C) to 140 degrees F (60.0 degrees C) Storage
Humidity: 10 to 95% Non-condensing Relative Humidity

Cisco CP-7940 Physical Characteristics:
Color: Dark Gray Body
Color: Silver Bezel
Dimensions: 8 Height x 10.5 Width x 6 Depth
Weight: 3.53 lb
