CP-7936-CH1

Manufacturer Part#: Cisco CP-7936-CH1

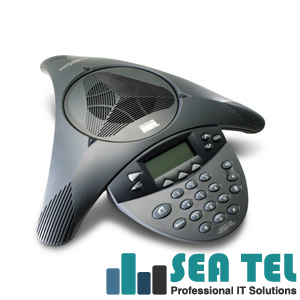

CP-7936-CH1 Cisco IP phone

CP-7936-CH1 - 1 x RJ-45 10/100Base-TX , 1 x - IP Conference Station

Cisco IP Conference Station 7936 combines state-of-the-art speakerphone conferencing technologies with award-winning Cisco voice communication technologies. The net result is a conference room phone that offers superior voice and microphone quality, with simplified wiring and administrative cost benefits. A full-featured, IP-based, hands-free conference station, the new Cisco IP Conference Station 7936 is designed for use on desktops, conference rooms, and in executive suites.

Cisco CP-7936-CH1 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 7900
Product Name: IP Conference Station 7936
Product Type: IP Conference Station

Cisco CP-7936-CH1 Technical Information:
Phone Features: Call Park
Phone Features: Conference
Phone Features: Voice Activity Detection
Phone Features: Call Pick-Up
Phone Features: Mute
Phone Features: Comfort Noise Generation
Phone Features: Calling Party Name
Phone Features: Date and Time
Phone Features: Call Release
Phone Features: Digits Dialed
Phone Features: Calling Party Number
Phone Features: Call Transfer
Phone Features: Call Hold
IP Phone Technology: VoIP
Voice Codec: G.711u
Voice Codec: G.711a
Voice Codec: G.729a
Dialer Type: Keypad

Cisco CP-7936-CH1 Display & Graphics:
Display Screen: LCD - Pixel-Based

Cisco CP-7936-CH1 Interfaces/Ports:
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x Microphone

Cisco CP-7936-CH1 Management & Protocols:
Protocols: CDP
Protocols: DHCP

Cisco CP-7936-CH1 Controls/Indicators:
Buttons & Keys: 1 x Volume Control Button
Buttons & Keys: 3 x Soft Key
Buttons & Keys: 1 x Menu Navigation Key
Status Indicators: Line Status

Cisco CP-7936-CH1 Power Description:
Power Source: PIM

Cisco CP-7936-CH1 Environmental Conditions:
Temperature: -22 degrees F (-30.0 degrees C) to 131 degrees F (55.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 20 to 85% Non-condensing Relative Humidity

Cisco CP-7936-CH1 Physical Characteristics:
Color: Gray Body
Dimensions: 12.5 Height x 12 Width x 2.25 Depth
Weight: 1.75 lb
